Basic Information
- Packing Weight: 35kg Packing Size: 80*50*44CM
- Laser Source: RAYCUS RFL-QS-20W/30W
- Marking Area(Lens): 110*110mm/200*200mm Optional
- Rotary Axis: D65/D69/D80mm Optional
- Adjustable Frequency Range: 20-60kHz
- Pulse Width: 90-150ns
- Software: EZCAD2.0 Lite. Support WIN XP/7/8/10/11 System
- Marking on various metals like Aluminum, Stainless Steel, Brass, Copper, etc. Also some nonmetal such as nylon, light button, ABS, PVC, PES, etc.
- Laser scanning system makes the marking speed up to 5000mm/s; Re-position precision is 0.002mm;
- The function of marking software is powerful. The machine can be compatible with software files such as Graphics, Text, Al, DXF, PLT, Bar Code, QR Code, etc supported.
- The machine can directly use SHX, TTF fonts; Automatic encoding, printing serial number, batch number, date, barcode, QR code, automatic jump number, etc supported.
- Applicable Material: Aluminum, Stainless Steel, Brass, Copper, etc. Also some nonmetal such as nylon, light button, ABS, PVC, PES, etc.
- Applicable Industry: Hardware industry, wrenches, measuring tools, sanitary ware, stainless steel, medical equipment, luggage, gifts, table bottom, glasses frames, instruments.
- China Warehouse Stock; Shipping by DHL/UPS/FedEx around 15 business days.
- Two-Year Warranty. Offer customer and remote technical support. Easy Operation, English User Manual, software sending together with the machine
| Technical Parameter | |

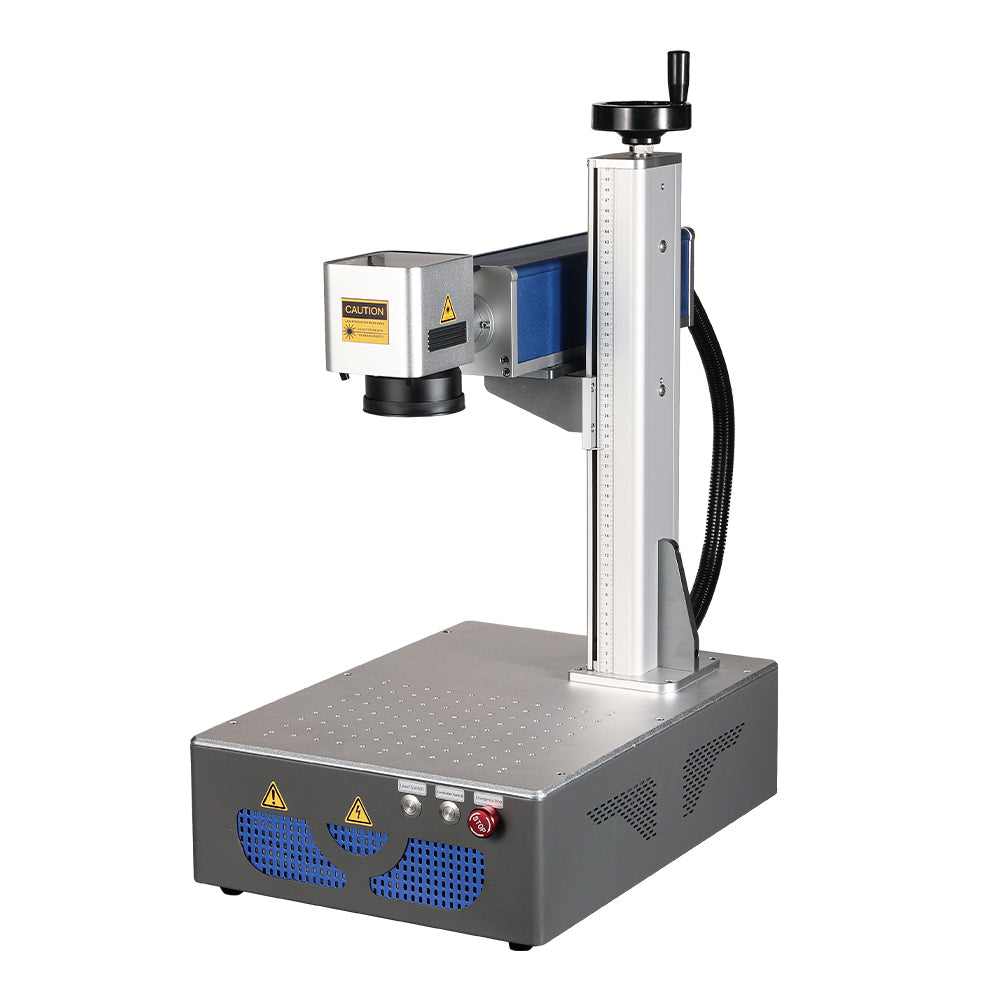

| Product | EasyMarker Fiber Marking Machine |
| Notice | 1. The power plug will be adapted according to the country of delivery. |
| 2. Rotary Attachment Set is suggested to be ordered together with marking machine as we can help you install it to marking machine before shipping. | |
| Laser Wavelength | 1064nm |
| Beam Quality | ＜2 |
| Max. Marking Speed | 5000mm/s |
| Minimum character | 0.3mm/ Depends on the material |
| Marking Depth | ≤0.5mm/ Adjustable depending on the material |
| Repeating Precision | ±0.002 |
| Power Supply | Optical: AC220V/50Hz,AC110V/60Hz |
| Temperature/Humidity | 0~35℃/ 10~95% |
| Power Consumption | ≤500W |
| Operating System | WinXP/Win7/ Win8/ Win10/?Win11 |
| Cooling System | Inbuilt Air Cooling |
| Communication | Standard USB2.0 |
| Format Supported | Graphics,Text,Al,DXF,PLT,Bar Code,QR Code,etc |
| Marking Software | EZCAD |
| Rotary | Optional |
Application
