Brand Features:
?Two-Year Warranty.?Offer customer and technical support.?
?Support Product Customization.

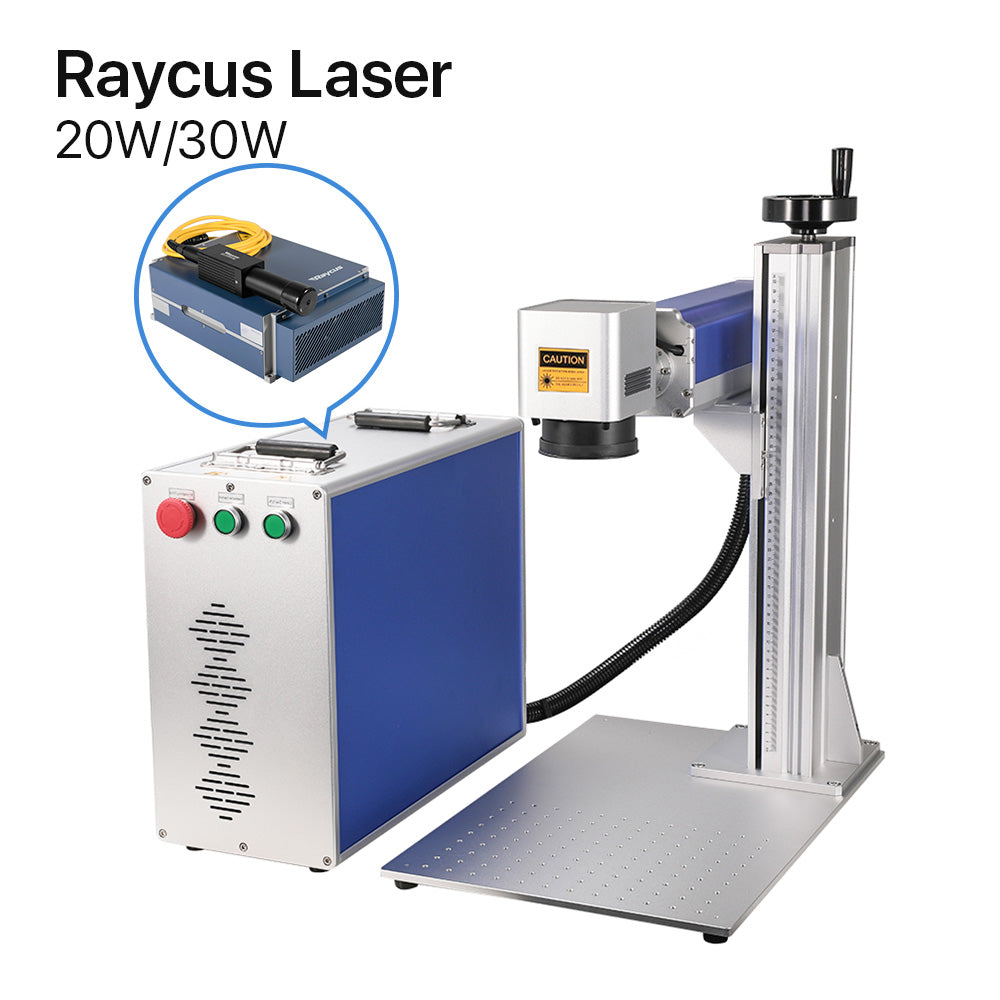

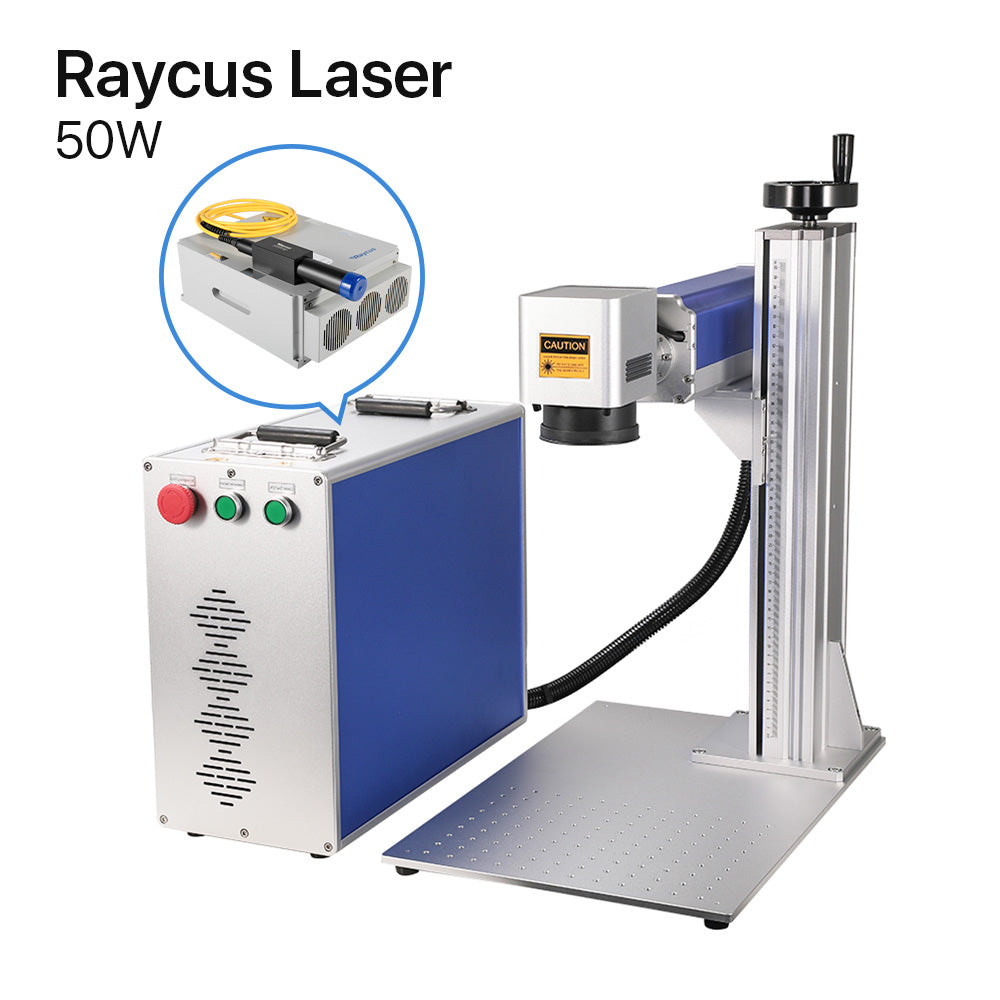

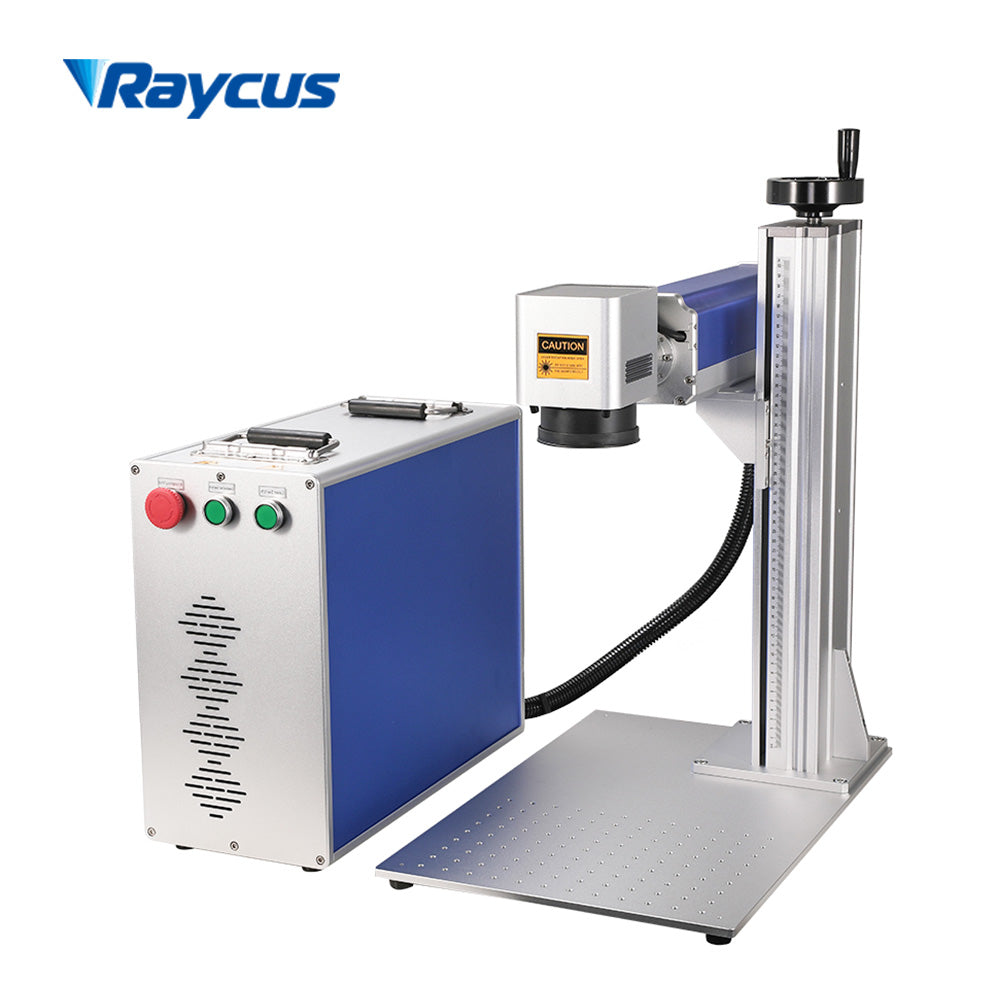

?High Configuration.?Laser Source: RAYCUS.? Software Supported: EZCAD2 Lite. Control Card: BJJCZ.

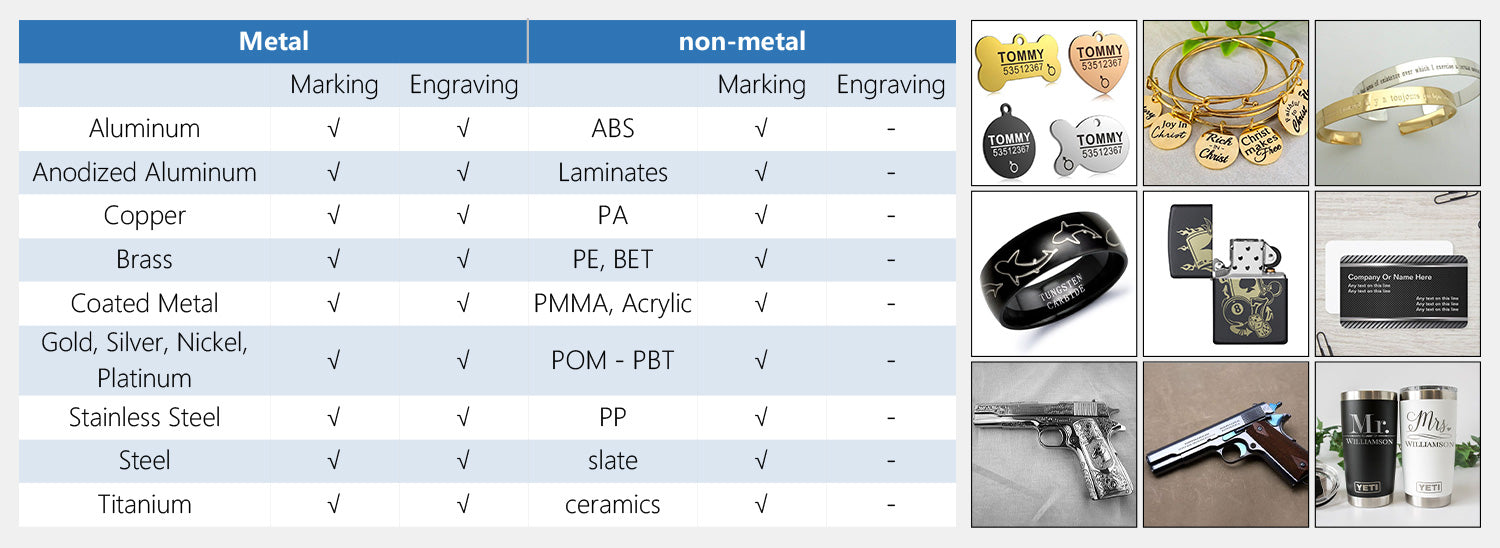

?Marking on Metal & Non-Metal Materials.?Marking on various metals like Aluminum, Stainless Steel, Brass, Copper, etc. Also some of the nonmetal such as nylon, light button, ABS, PVC, PES, etc.

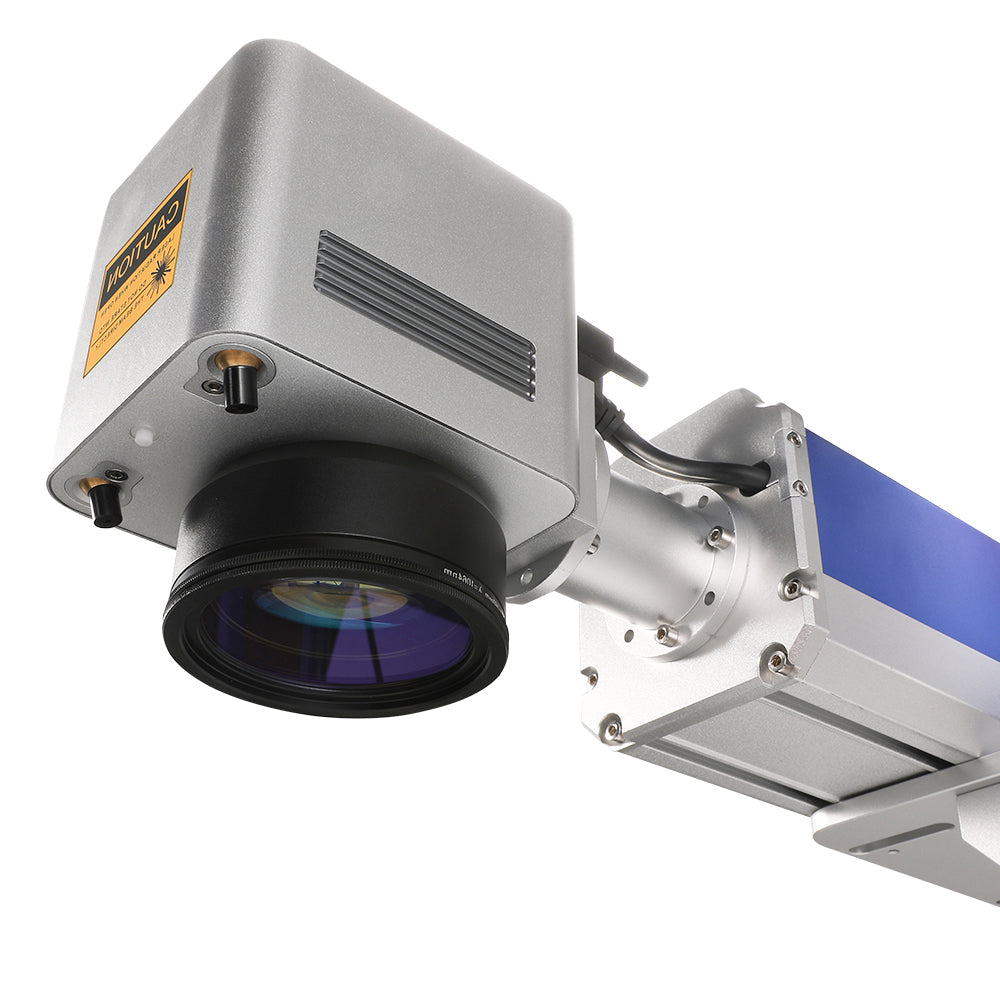

?High Marking Speed.?Imported laser Galvo system makes the marking speed up to 5m/s; Re-position precision is 0.002mm; High-Rate of Electrical-Optical Conversion: up to 70%.

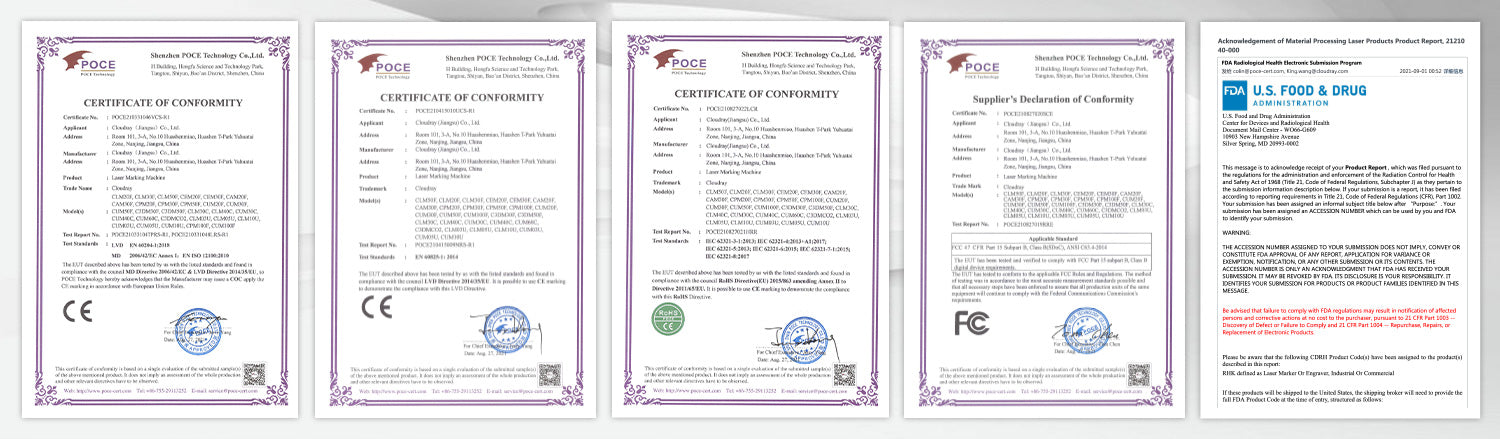

?FDA Compliant & CE Certification.
| CLM20F | CLM30F | CLM50F | |
| Power | 20W | 30W | 50W |
| Marking Area | 110*110mm | 110*110mm/200*200mm | 200*200mm/300*300mm |
| Laser Type | Raycus Laser | ||
| Repetition Rate(Frequency) | 20-60kHz | 30-60kHz | 50-100kHz |
| Pulse Duration | 90-130ns | 90-130ns | 90-150ns |
| Output Power Adjustment Range | 10%-100% | ||
| Marking Speed | ≤5m/S | ||
| Engraving Depth | ≤0.2mm | ≤0.4mm | ≤1mm |
| Minimum Line Width | 0.01mm Depends on the material | ||
| Minimum Character | 0.2mm Depends on the material | ||
| Electrical Requirements | 110V-240V/50Hz-60Hz (According to local electricity supply) | ||
| Power Consumption | 500W | 800W | 1000W |
| Marking Interface | USB Connection.Compatible with Windows XP/7/8/10/11 | ||
| Communication Mode For Automation | TCP/IP,IO,RS232 | ||
| Marking Content | Barcodes,Serial Numbers,Text,Vector,Logos… | ||
| Red Dot Pointer | Since the laser beam is invisible, the Red Dot Pointer allows you to have a visual reference for locating where the laser will fire. | ||
| Contact us：info@raylasers.com | |||
?

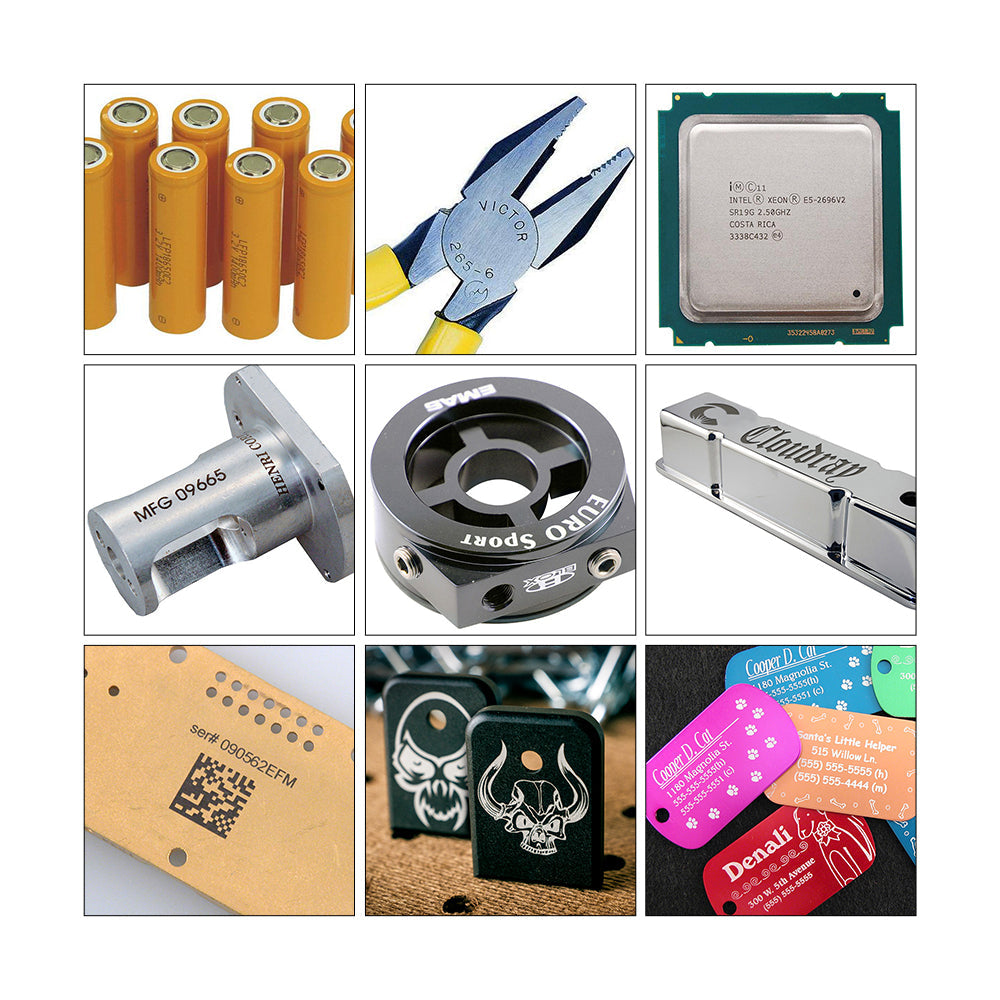

Application

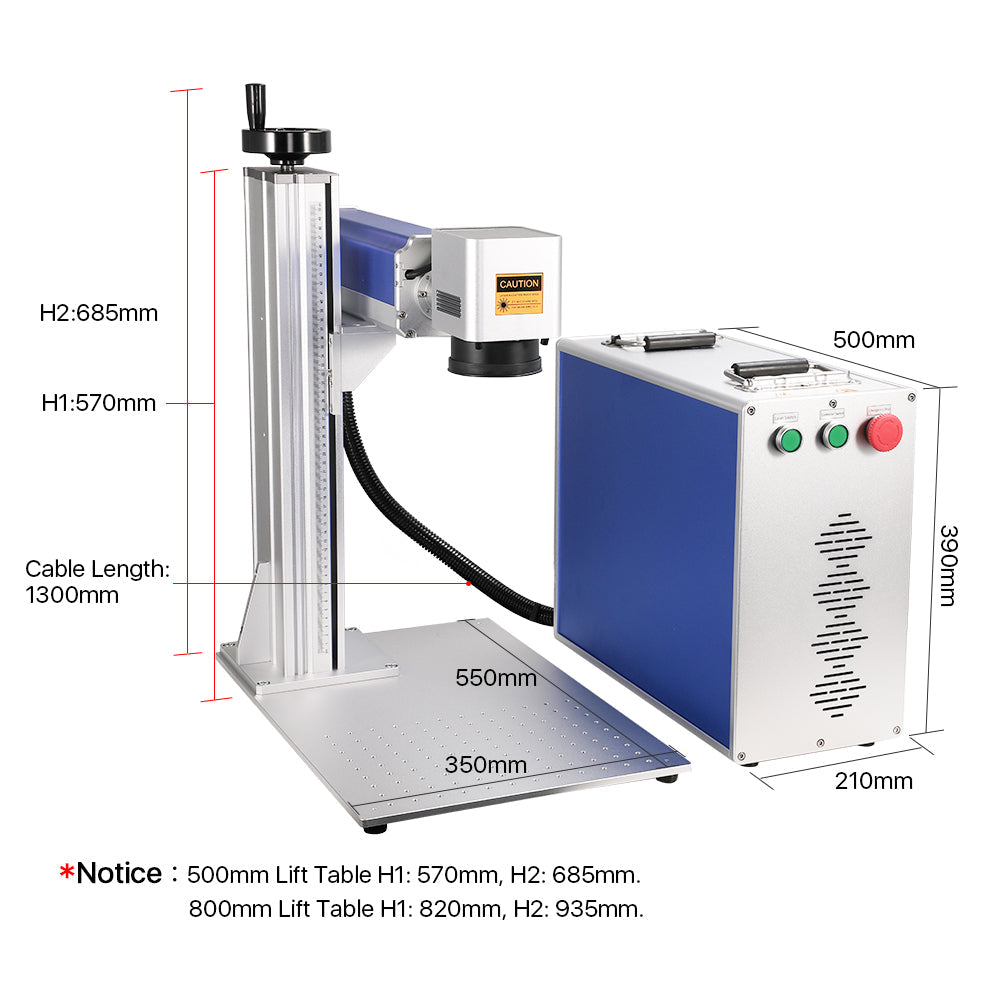

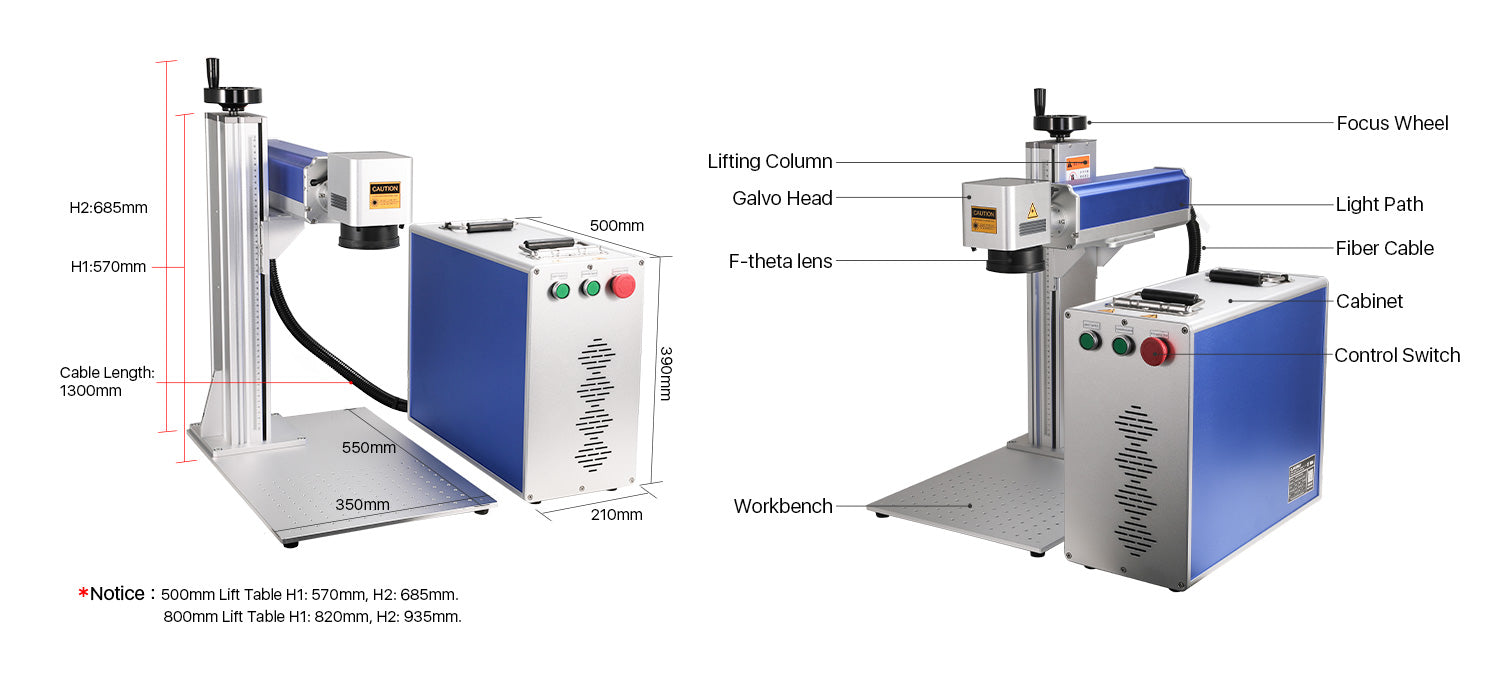

Product Size

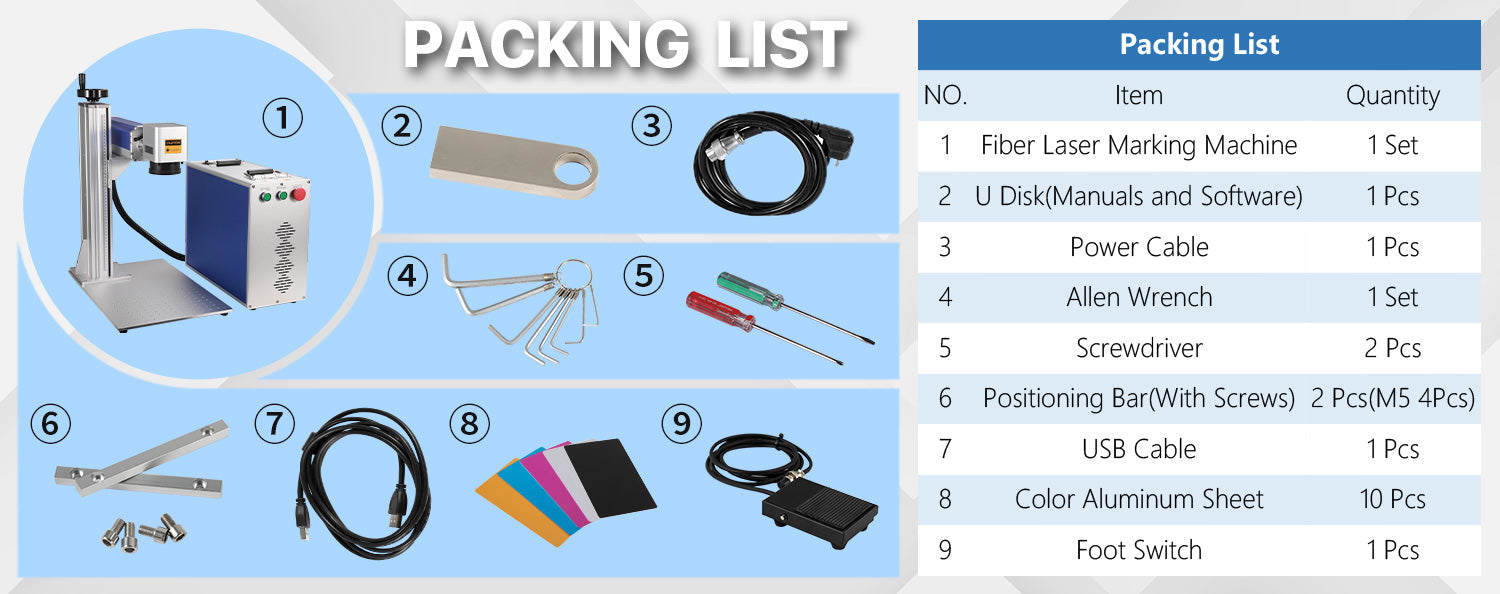

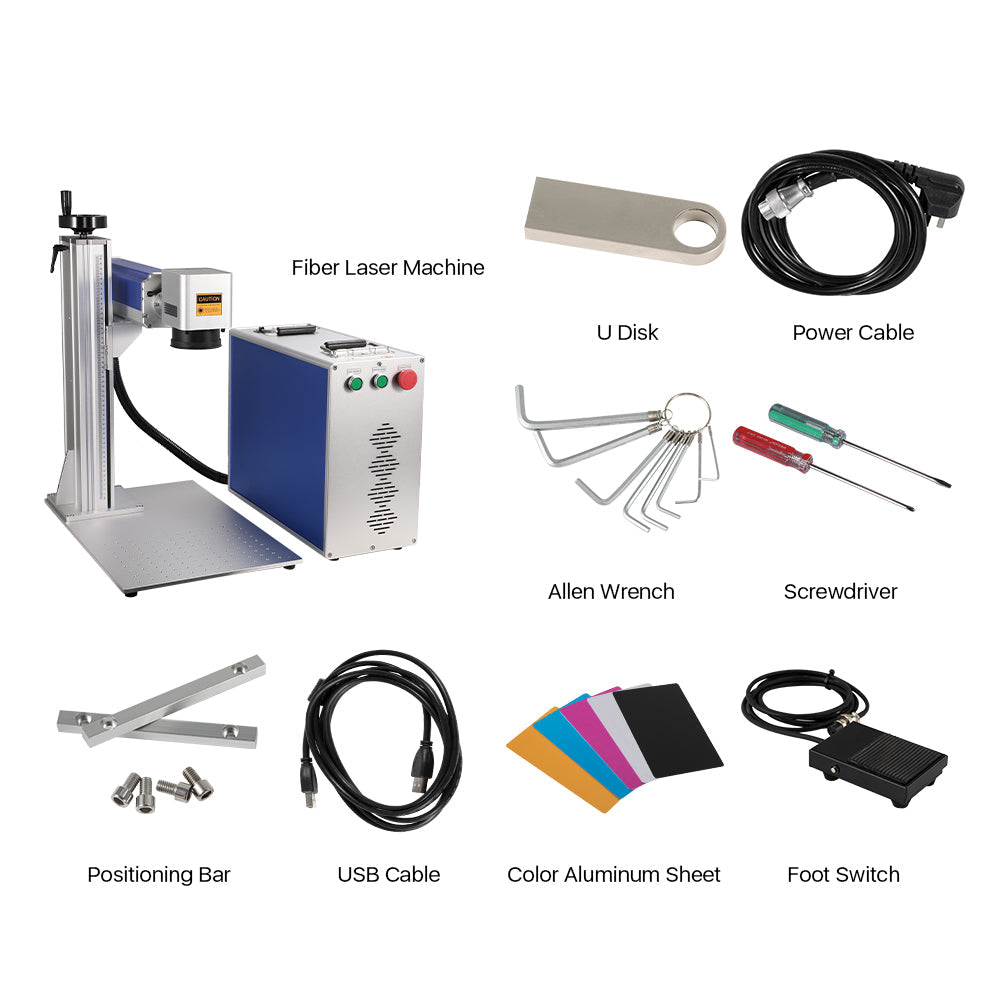

Packing List

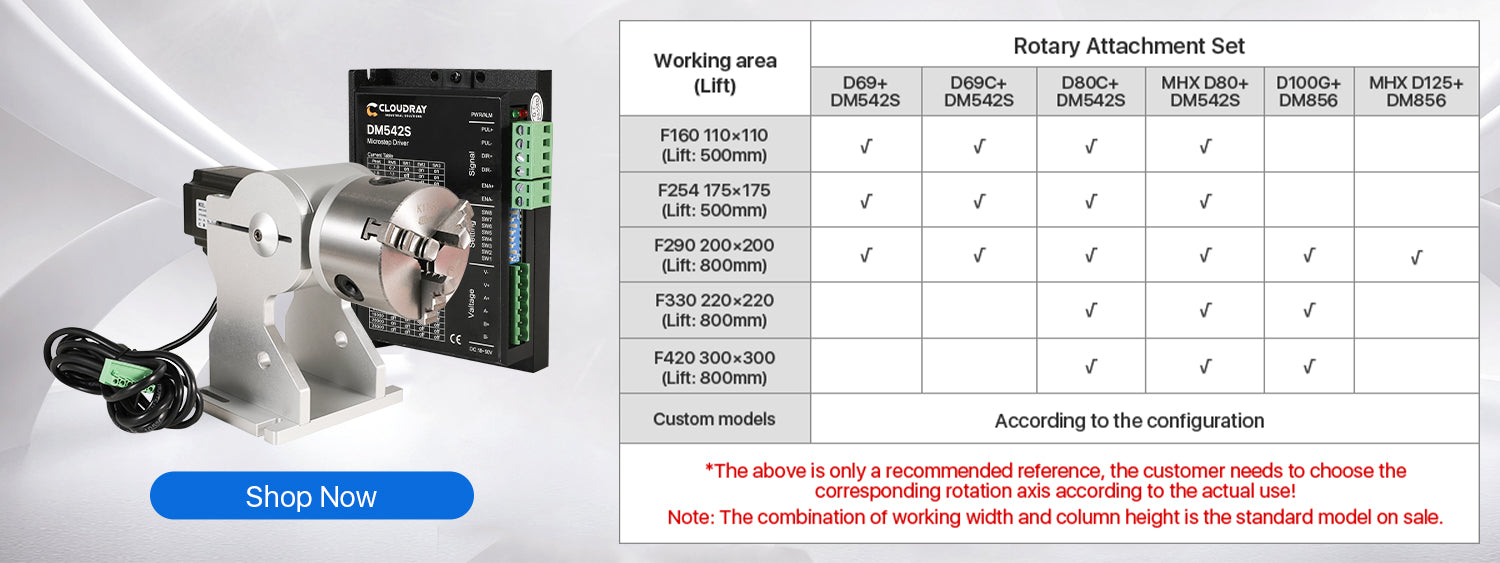

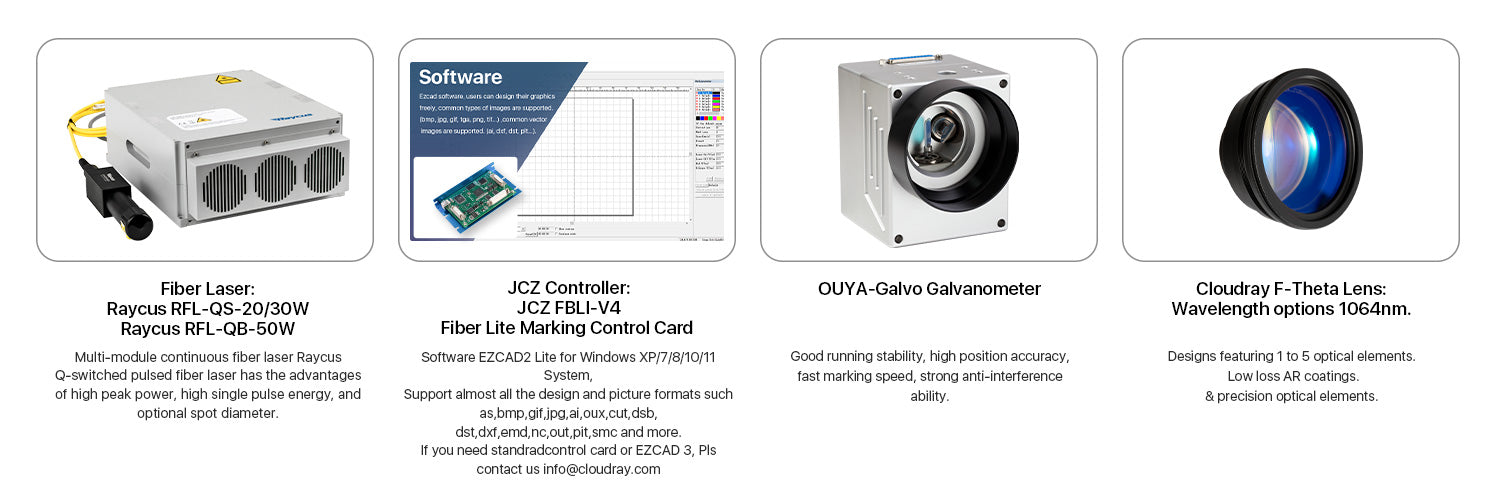

Laser Parts Recommendation
 |
 |
 |
 |
