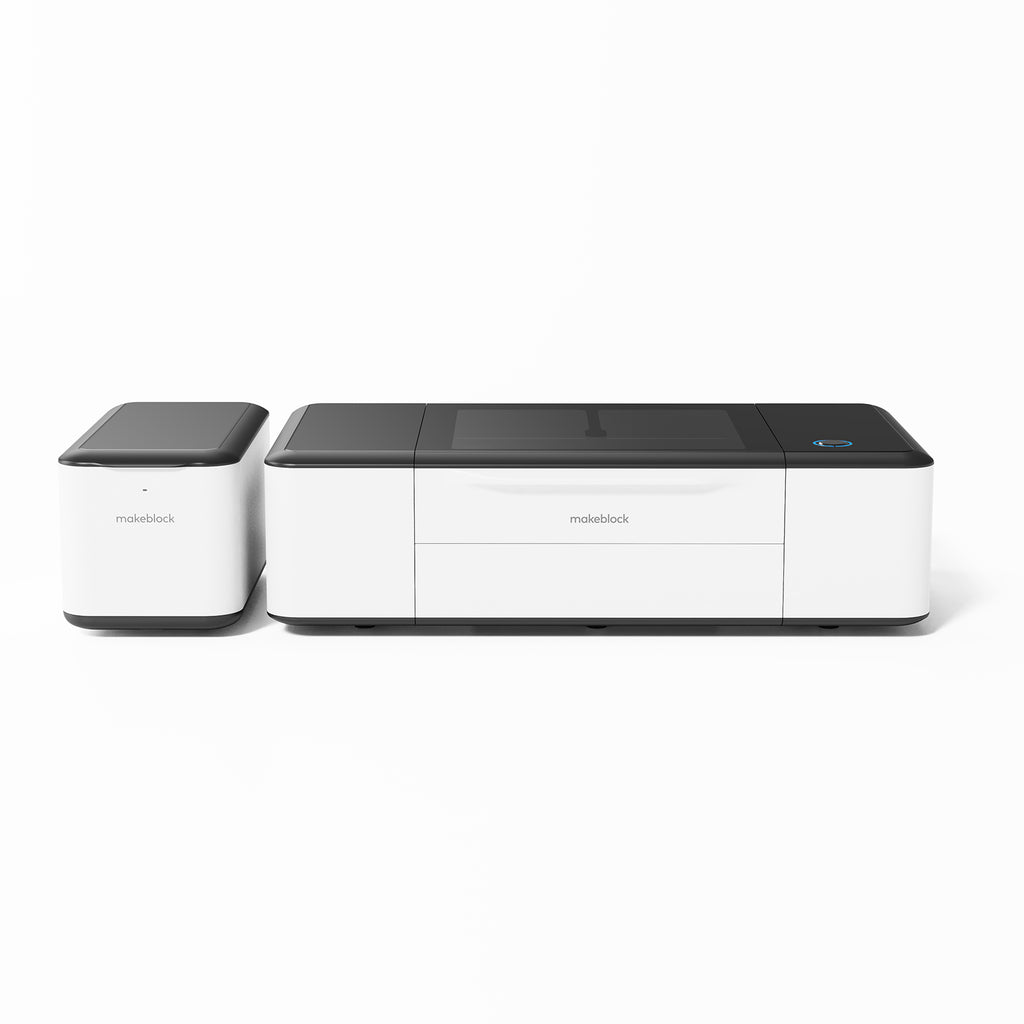

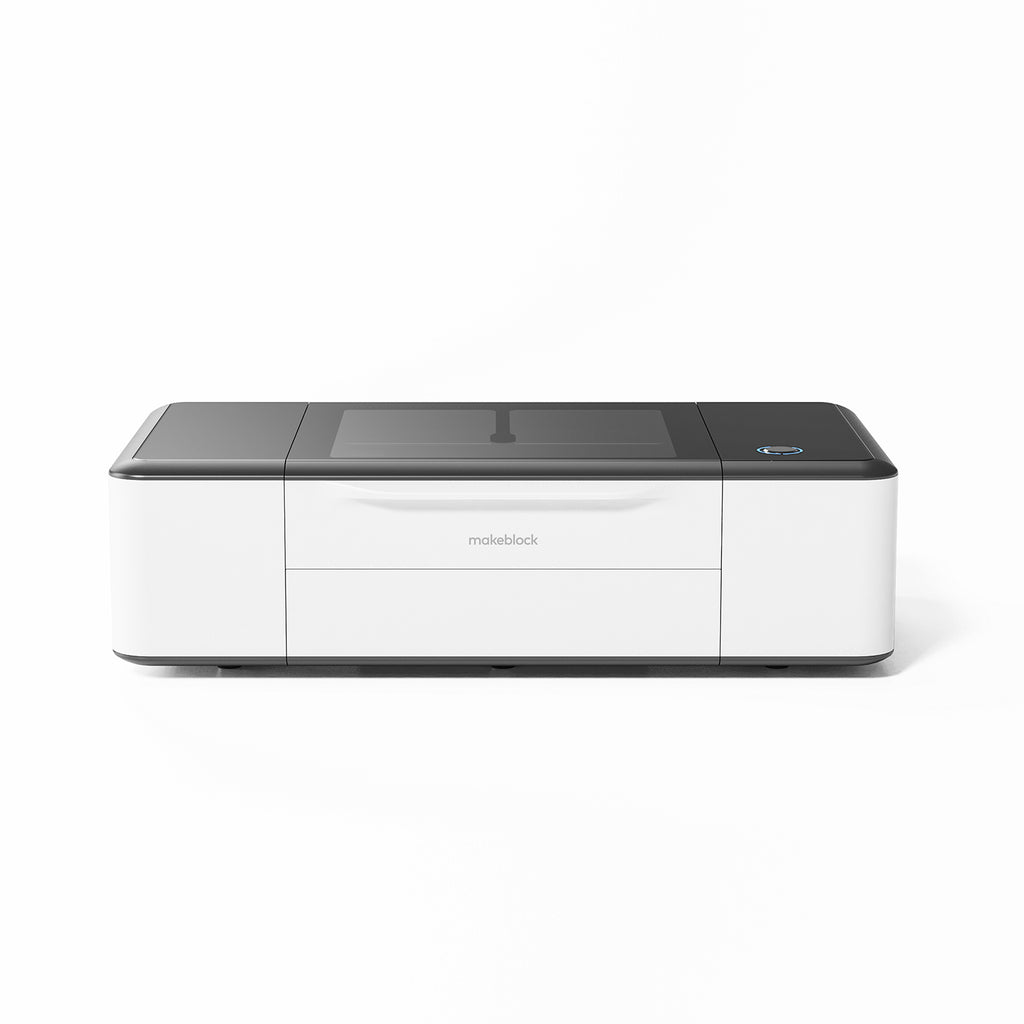

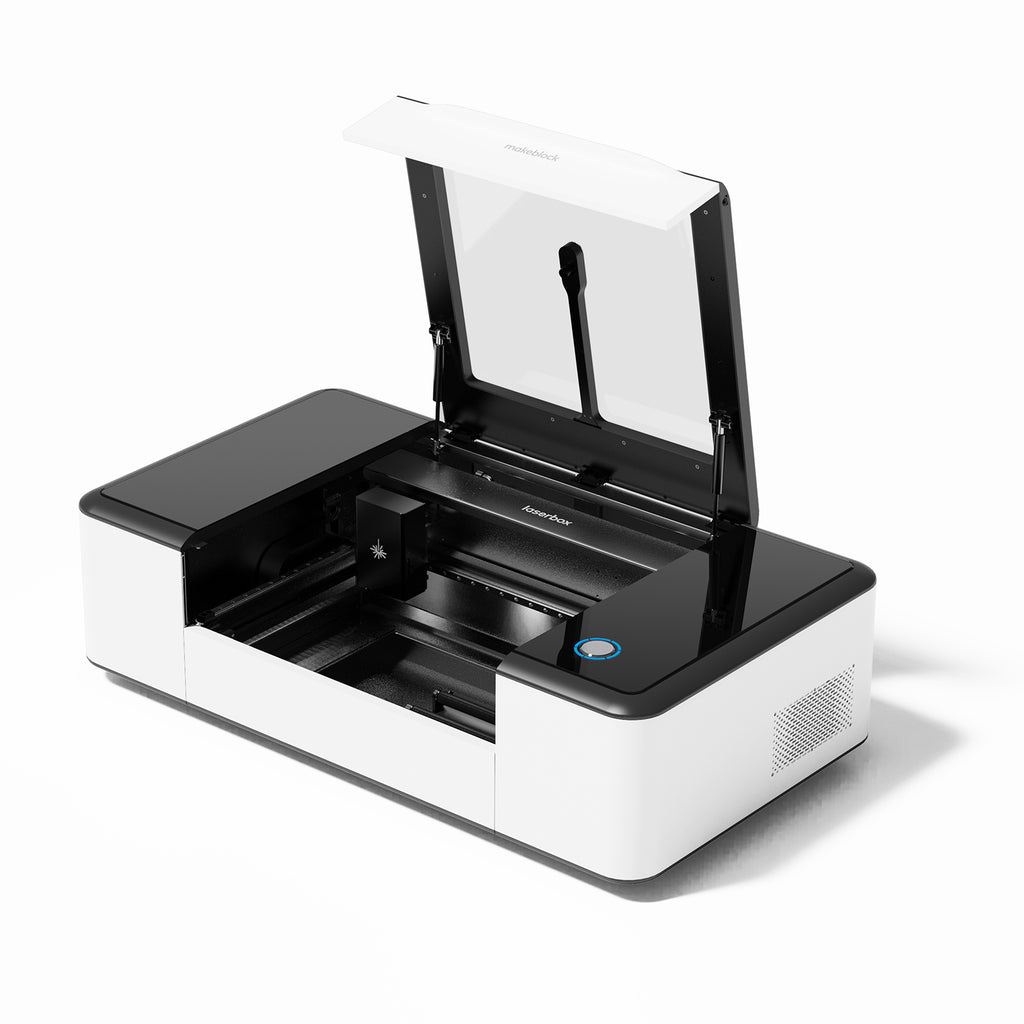

Laserbox Rotary
Best home laser cutter machine for small businesses.Best 3D laser cutter for small business/hobbyist/designer/home-maker/professional. Specially designed for education and creation, Laserbox reimagines and redefines laser operating performance by the use of a high-resolution ultra-wide-angle camera together with an AI visual algorithm.
|
 |
We Bring Laser Cutting & Engraving to Easier Access |
 |

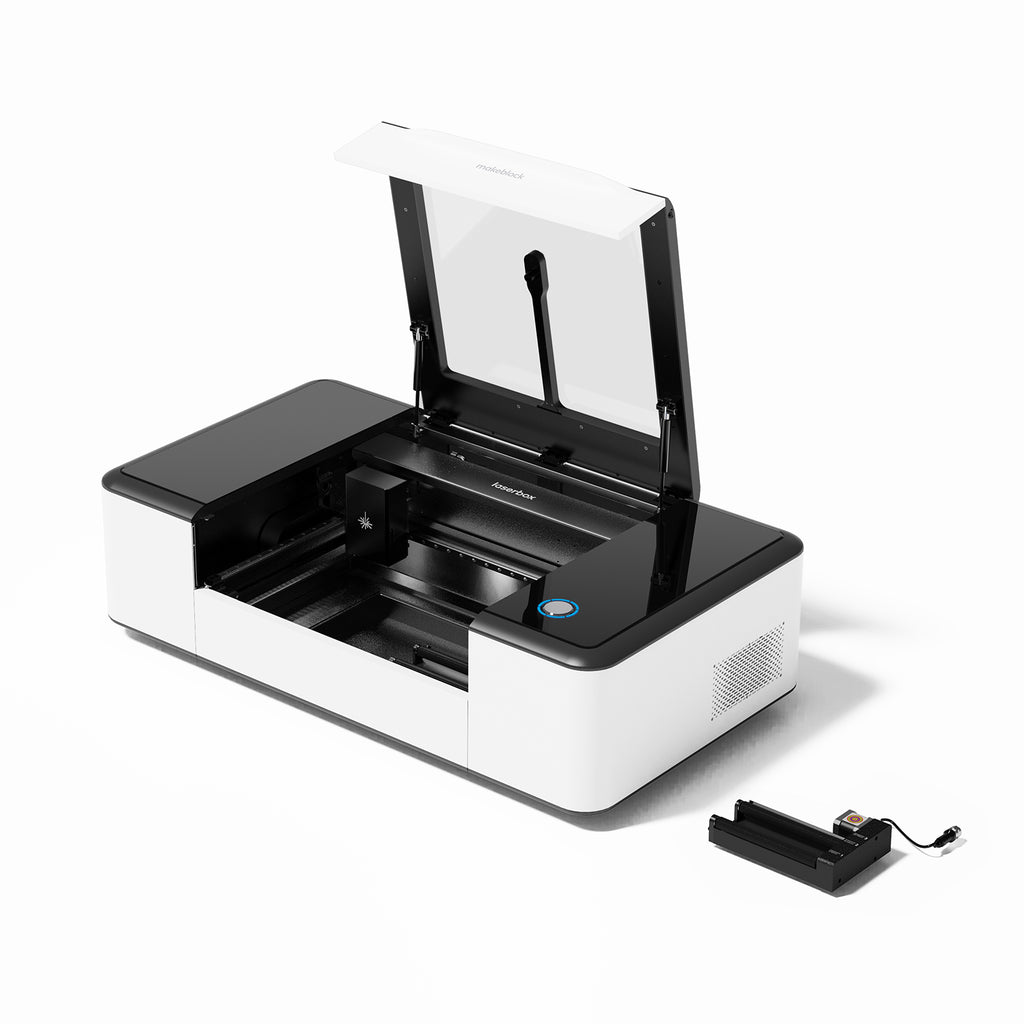

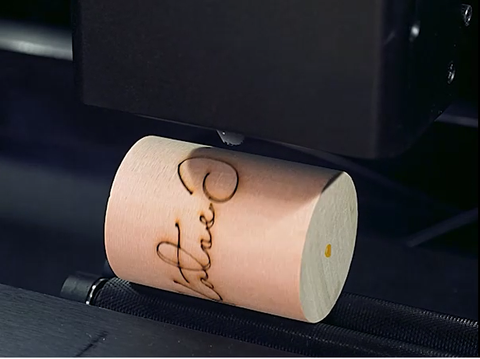

Rotary SupportThe rotary accessory attachment unlocks 360° engraving for cylinders from 3mm to 70mm in diameter. Customize a wide range of cylindrical materials with the rotary accessory attachment. |
|

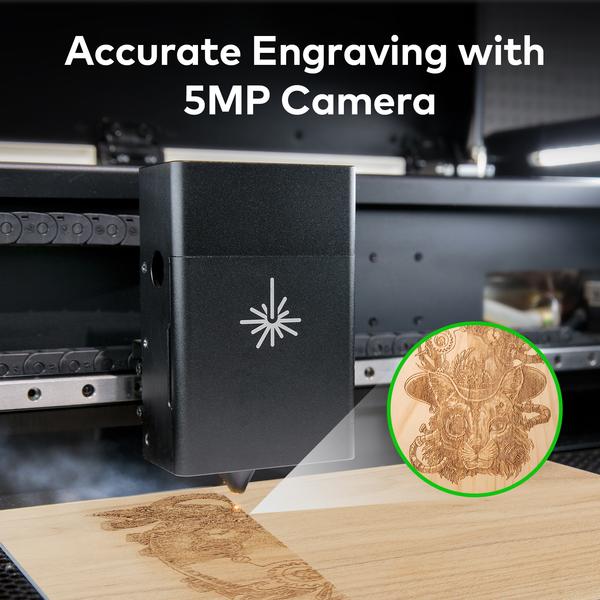

Live Camera PreviewPreview your design and visually position it on the material. The embedded 5MP ultra-wide-angle camera displays a visible working area in real time, ensuring accurate laser cutting or engraving. |
 |
 |

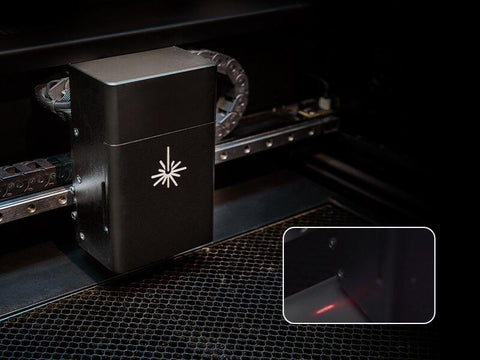

AI Auto-FocusxTool Laserbox will initiate auto-focusing, including Visual Identification, material Thickness Settings and Material Recognition, to guarantee high-precision laser results. |
|

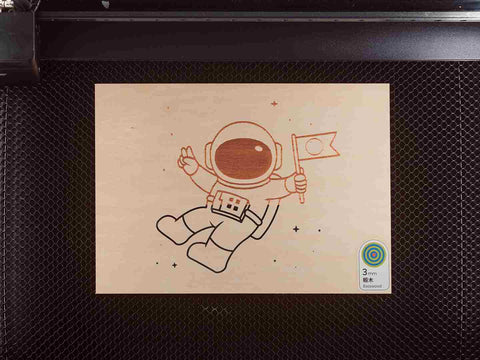

Design with a PenDirectly draw your desired design on paper or directly on Laserbox materials, and get identically beautiful prints. xTool Laserbox recognizes a thick 3mm red color line for cutting and black for engraving automatically. |
 |
 |
Set up in MinutesEasy installation and ready to use right out of the box. Connect the power cord and turn on the power, you can start creating right away. |

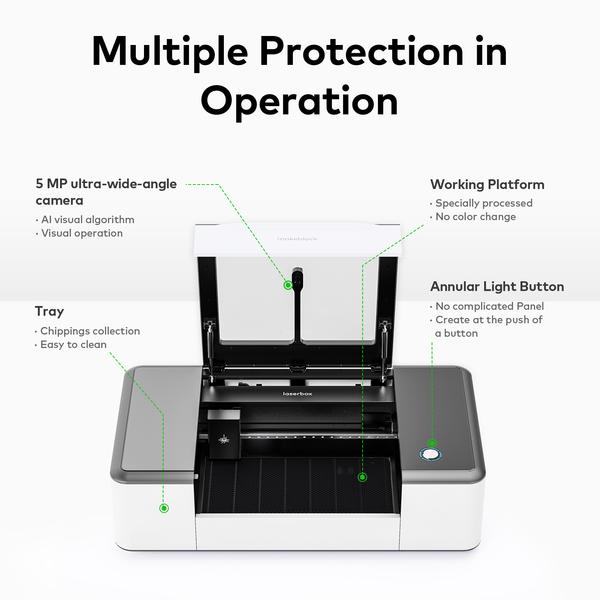

Safe for SchoolsWith 8 early warning alarms, flame-retardant body cover and a complete safe mechanism for children, xTool is certificated with FDA, CE, IC-ID, RoHS and 9 international safety regulations. |
 |
 |

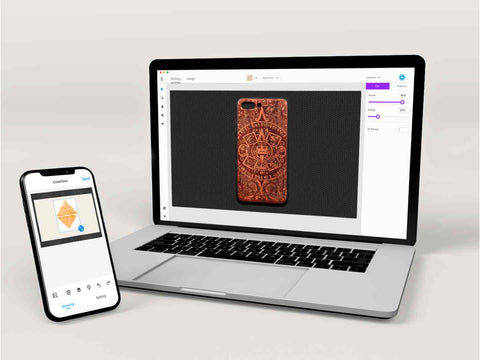

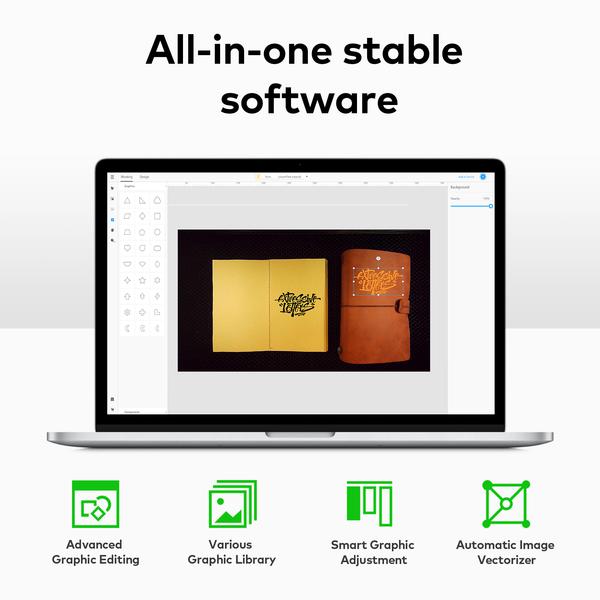

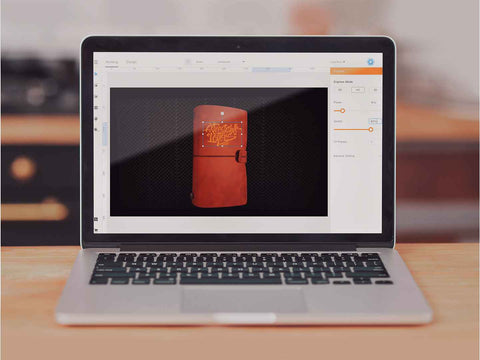

Simple SoftwareFeatured in all-in-one graphic design tool and visible working area, Laserbox software runs on Windows/macOS, which empowers you to create like a pro, no internet connection required. |

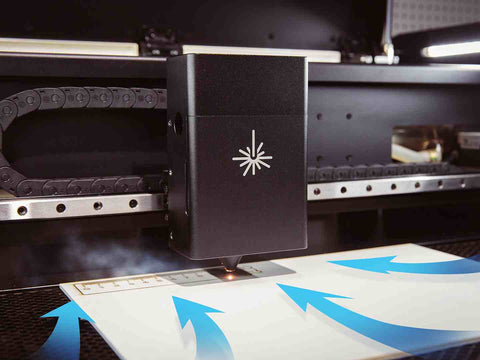

Smart Purified SystemThe upgraded Smart Air Purifier adjusts the airflow in line with Laserbox working status, which cleans the smoke and protects you from toxic fumes in a more efficient and eco-friendly way. |
 |
 |

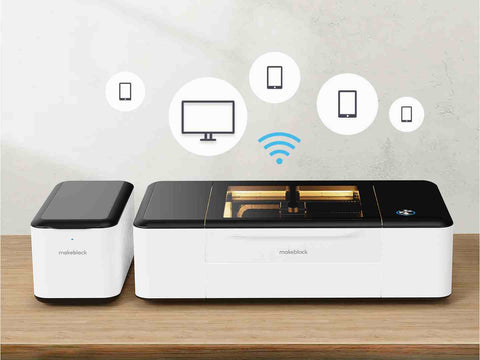

Easy Share like a PrinterSupport multiplayer operation online. You can use send works to Laserbox via different computers just like printing documents, no repeated connection required. |
|

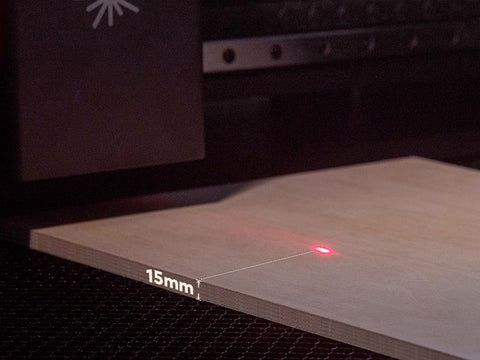

Powerful CO2 Laser TubeLightning-fast cutting and engraving speed up to 350mm/s, with a cutting depth of up to 15mms. A pinpoint 0.05mm laser beam, cleanly cuts a wide range of materials. |
 |
Product Specification |
|
Laser System |
|
| Laser Power | 40W |
| Laser Source | CO₂ Glass Laser Tube |
| Lifespan | 6000~8000h |
| Safety Guard | Class I (FDA Certified) |
Materials Processing |
|
| Max. Cutting Depth | 0.59” Basswood |
| Max. Carving Speed | 350mm/s |
| Carving Precision | 0.05mm |
| Noise Rating | ≤70dB |
Rotary Device |
|
| Rotary engraving diameter | 3-70mm(0.12”-2.76”) |
| Rotatable engraving pattern types | Image / Line / Text |
Work Area |
|
| Work Table Area | 19.69” x 11.81” |
| Max. Workpiece Height(with honeycomb tray) | 0.87” |
| Max. Workpiece Height(without honeycomb tray) | 3.54” |
| Work Table Surface | Black (Special surface finishing technique helps reduce burn marks or discoloration) |
AI Camera Information |
|
| Focus Mode | AI Visual AF/Material Recognition AF/Material Set-up AF |
| Camera | High-resolution Ultra-wide Camera |
| Number of Pixels (Effective) | 5MP |
| Visible Area | 19.29” x 11.42” |
| Image Resolution | 1000DPI |
| Positioning | AI Visual Positioning (Error range ≤ 5mm) |
Working Mode |
|
| Cooling | Closed-loop self-contained internal liquid cooling system |
| Air Assist | Internal air assist with no external compressor hookup required |
| Connection / Transmission | Wi-Fi, USB, Ethernet |
Appearance Overview |
|

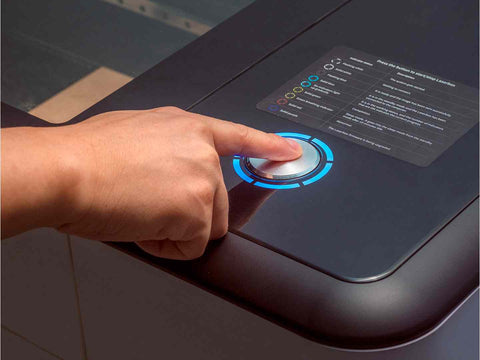

| Operation Panel | Push Button + Circular LED Indicator Light |
| Frame Materials | V0 Flame Retardant ABS / PC |
| Connecting Interfaces | USB cable/Ethernet cable/Power cable/Aviation Connector |
| Outlet Diameter | 63.5mm |
Software Requirements |
|
| Operating Systems | Windows/macOS |
| Control Software | Laserbox |
| Design Software | AutoCAD, Solidworks, Inkscape, CorelDRAW, PowerPoint, Illustrator, Photoshop, Google AutoDraw, etc. |
| Supported File Type | SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc. |
Software System Requirements |
|
| Operating Systems | 64-bit Windows 7 or later/macOS Mojave10.13 or later |
| Processor | Core i3 or AMD A6 2.4Ghz |
| Memory Space | 4GB RAM |
| Storage Space | 5GB |
Environmental Requirements |
|
| Power | 220/110VAC, 50/60Hz |
| Work Consumption (without fan) | 350W |
| Nonoperating Temperature | 0~45°C |
| Relative Humidity | 5~90°C |
| Operating Ambient Temperature | 0~35°C |
Size and Weight |
|
| Product Weight | 48kg |

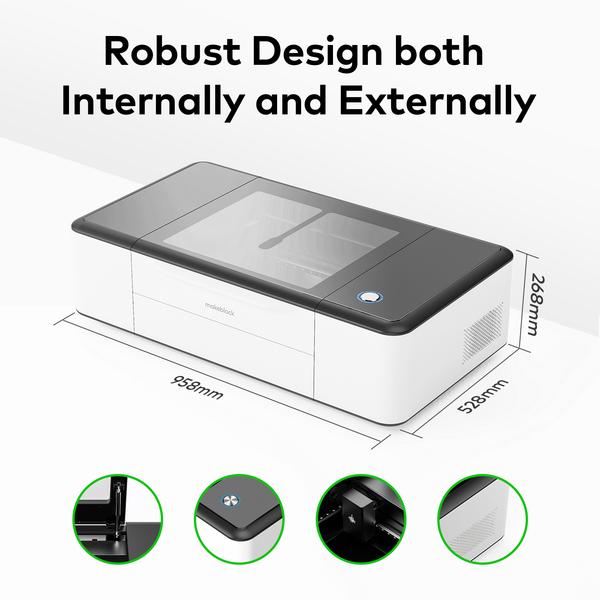

| Product Size (L x W x H) | 37.72” x 20.79” x 10.55” |
Supported Accessories |
|
| Smart Smoke Purifier | √ |
| Exhaust Fan | √ |
| Rotary Attachment | √ |

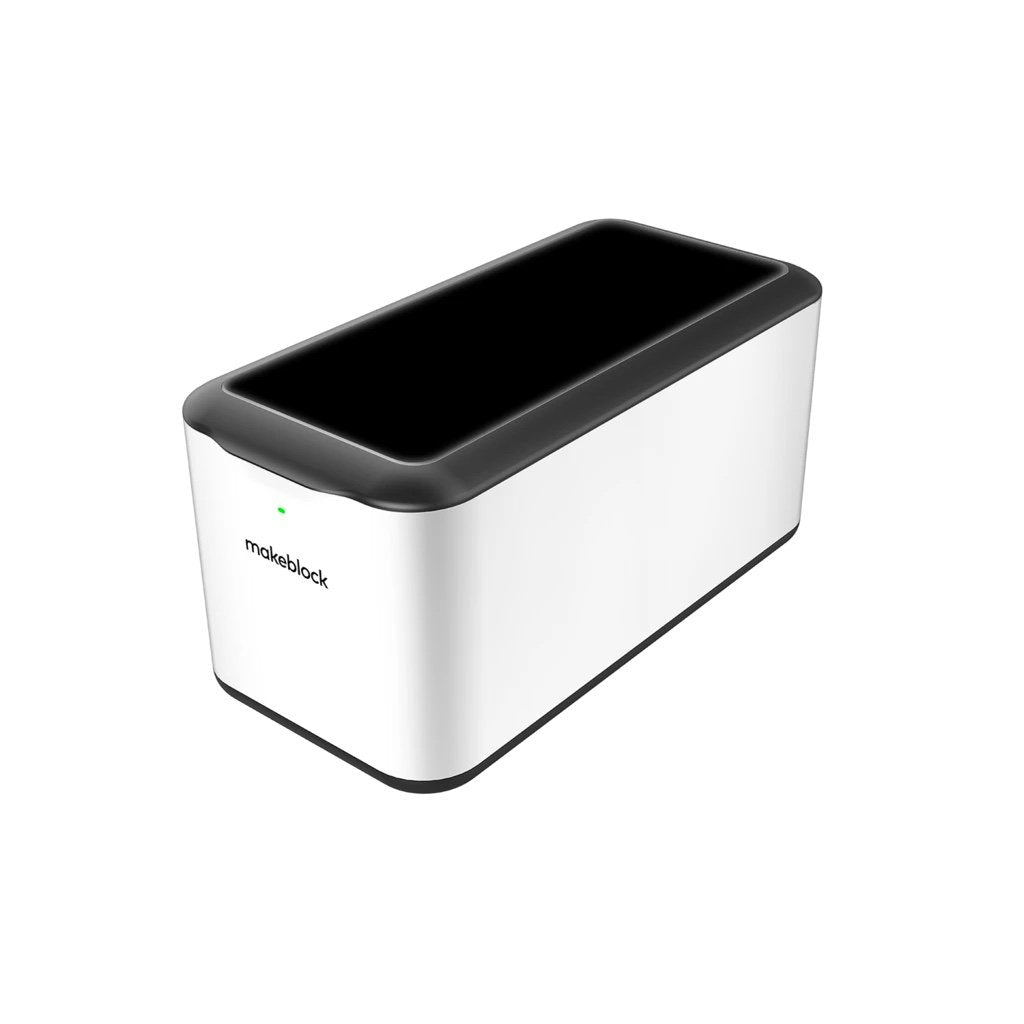

Smart Smoke Purifier
Features |
| Smart air filtering | |
| Replaceable filter | |
| Compact design | |
| Green & Eco-Friendly |
Unleash your creativity on hundreds of finest materials, and it shows!
