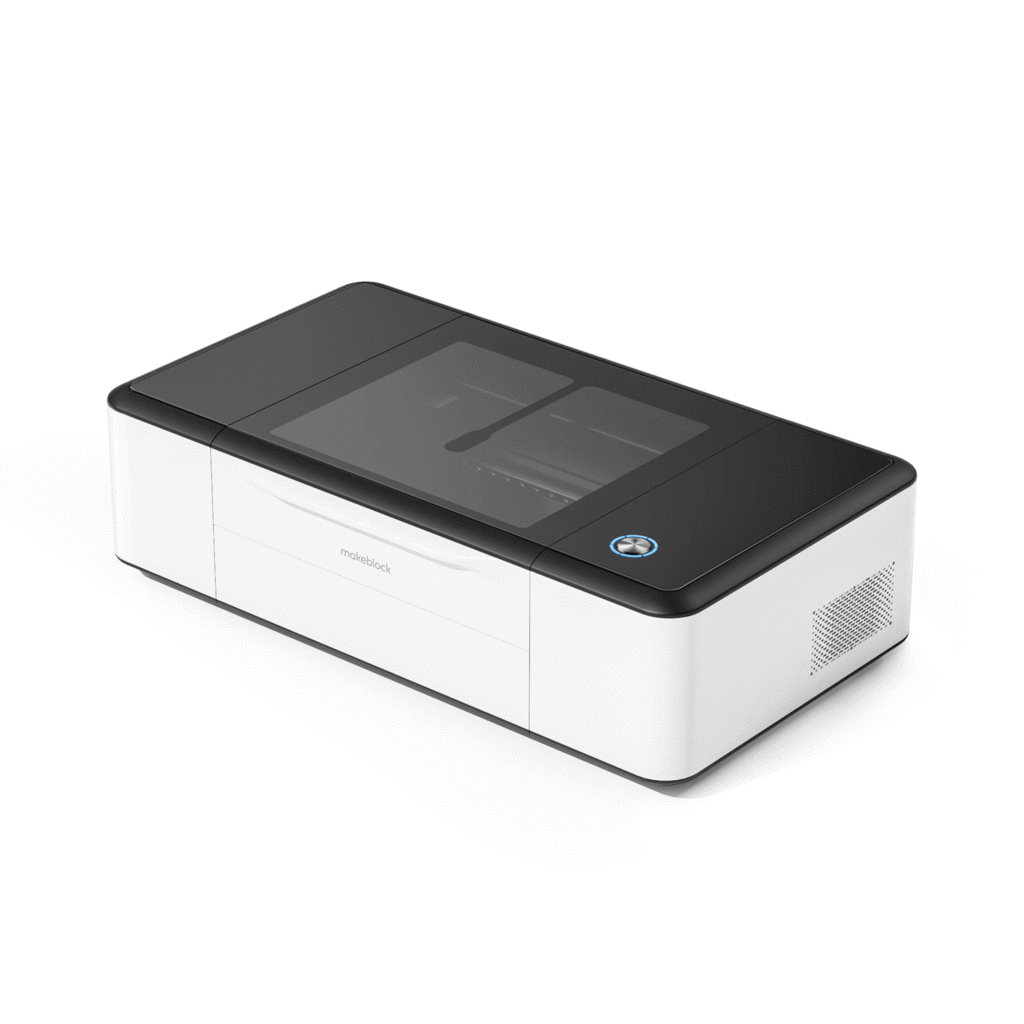

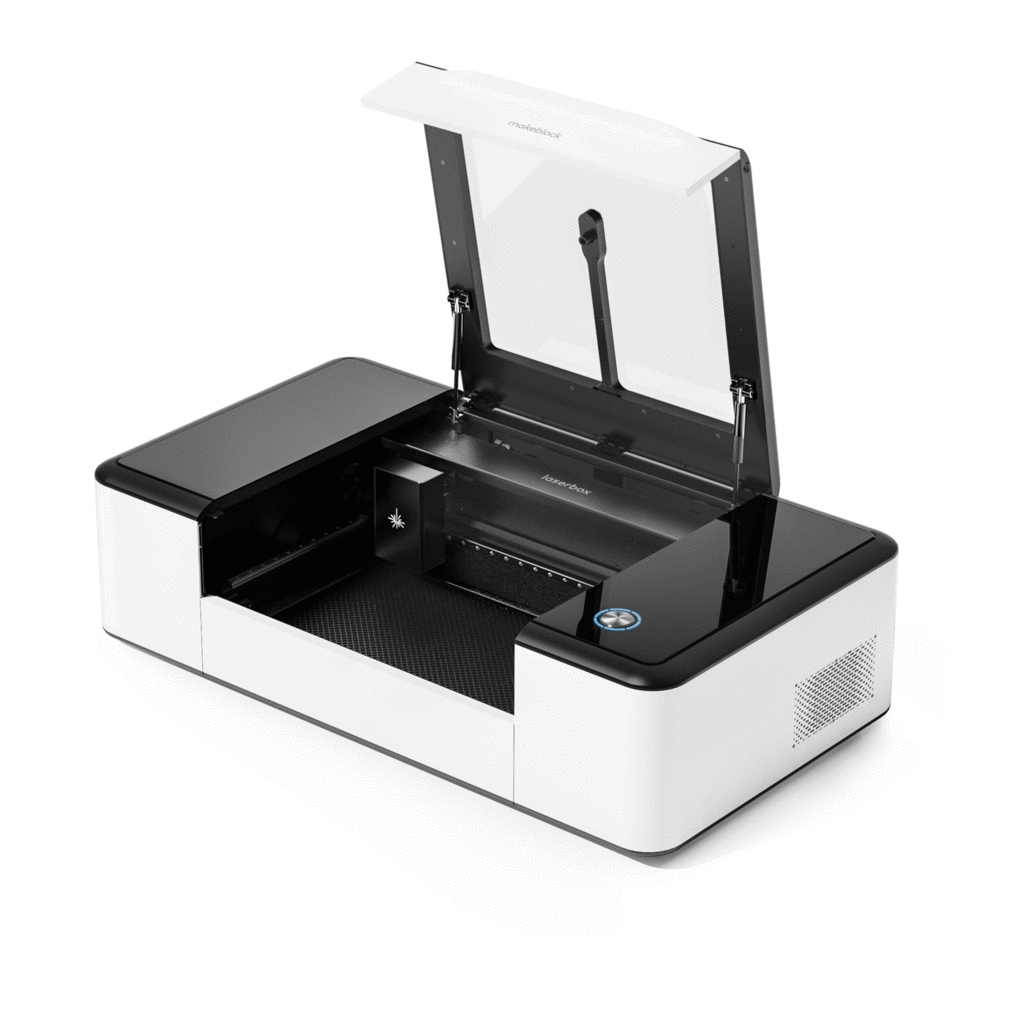

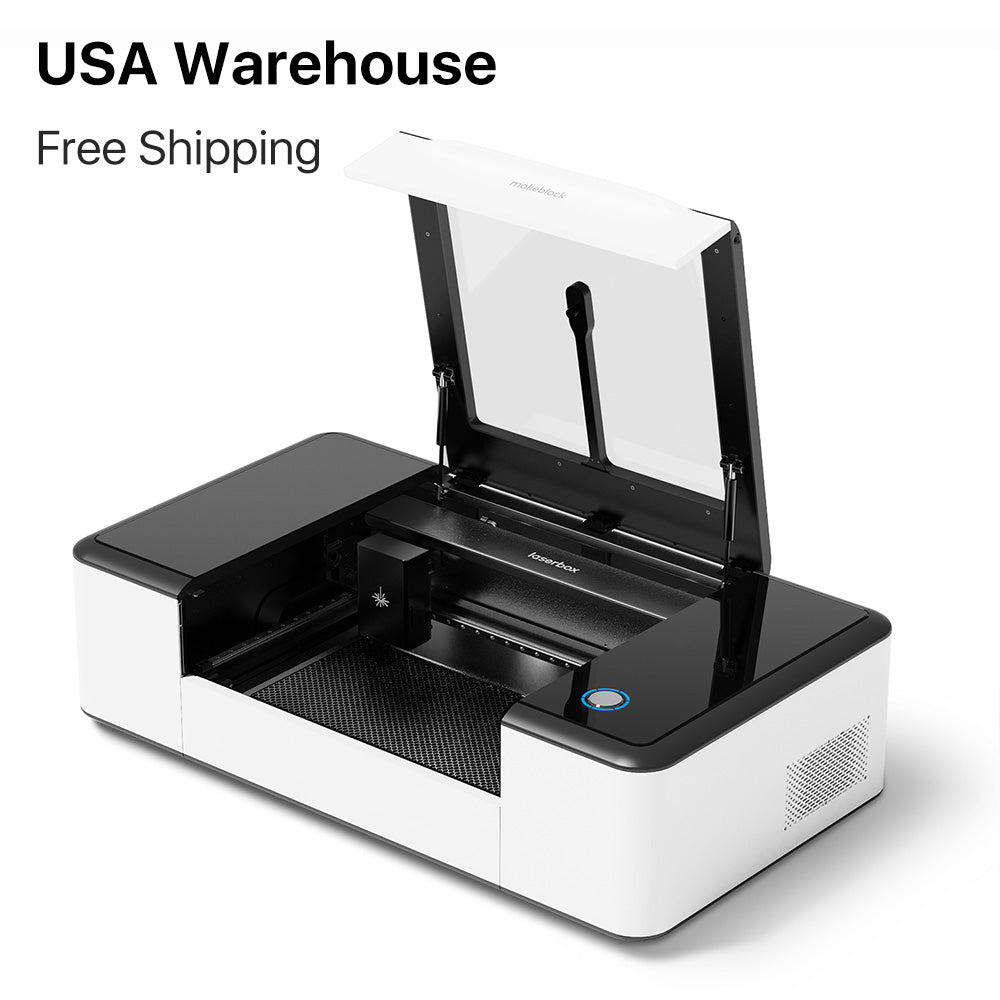

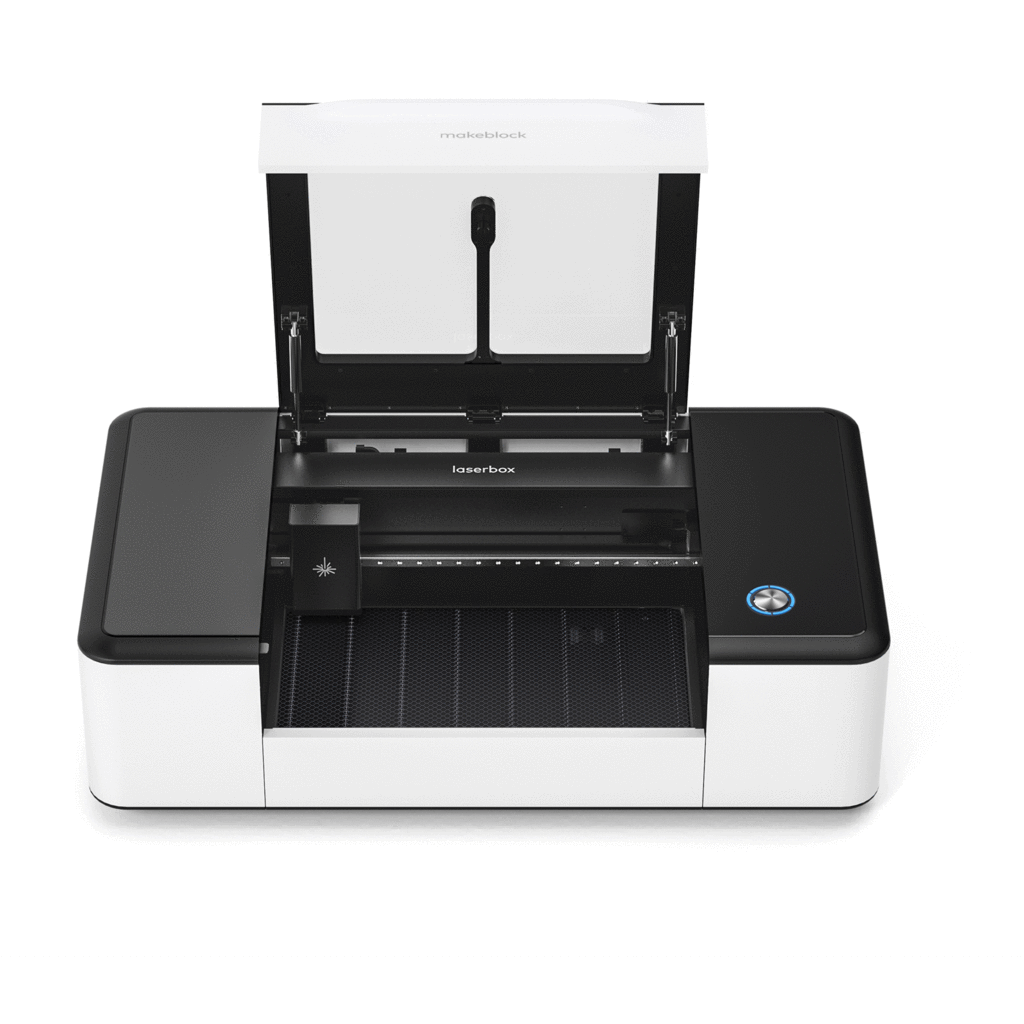

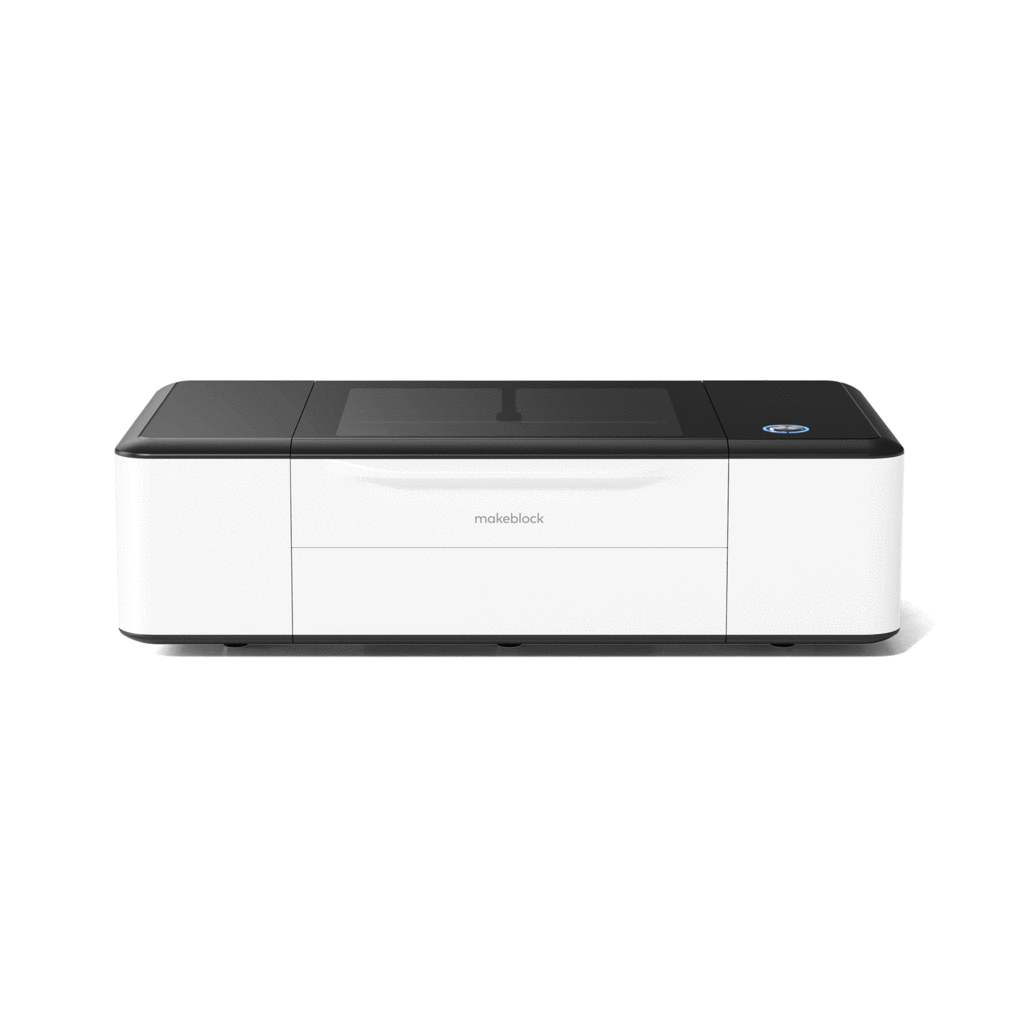

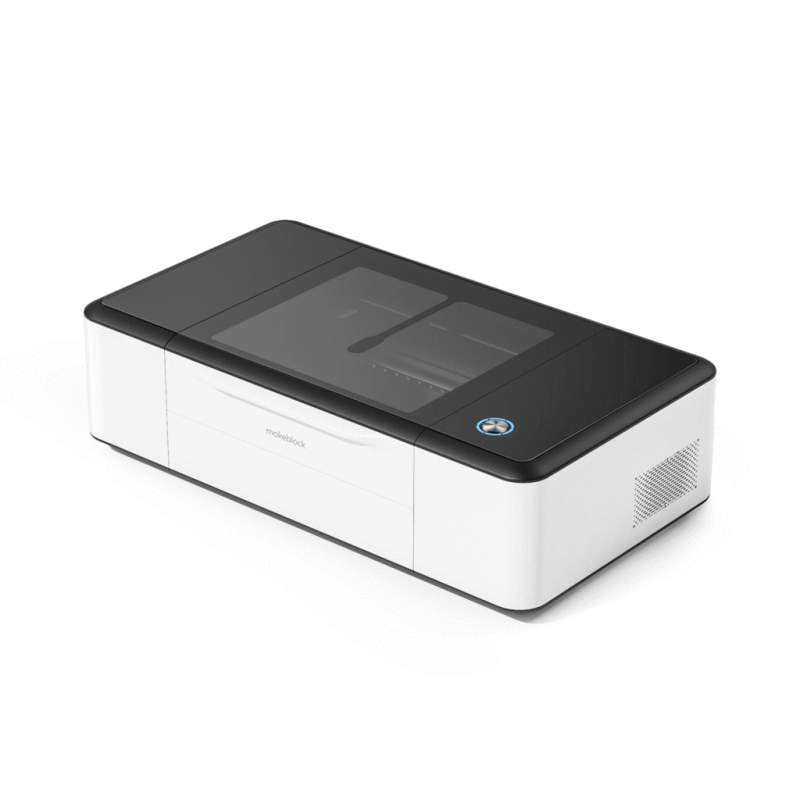

USA Warehouse Raylasers 40W Laserbox Pro CO2 Laser Cutting & Engraving Machine

$3,999.00 – $4,715.90

Clear

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Questions? Request a Call Back

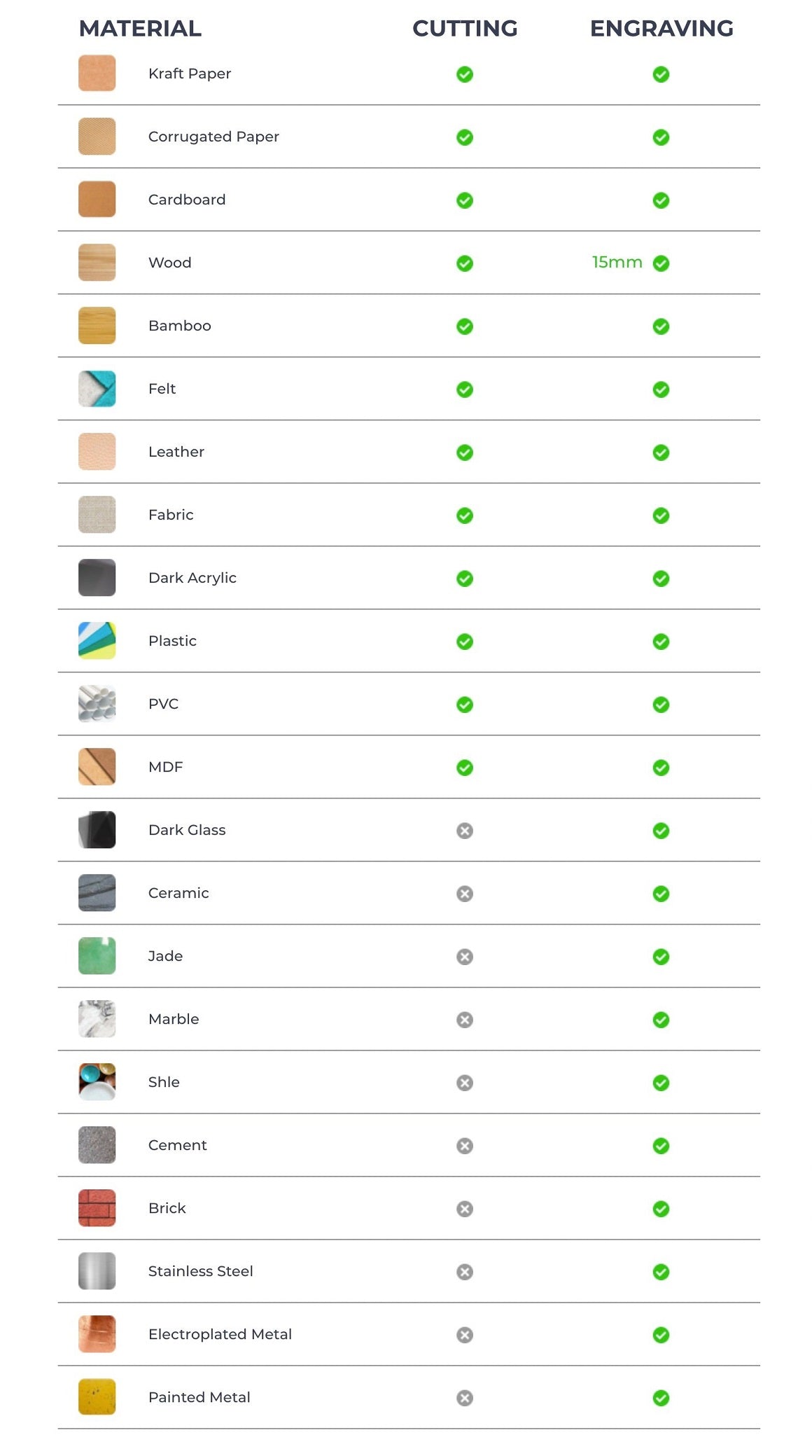

Discover What You Can Make with Laserbox Pro

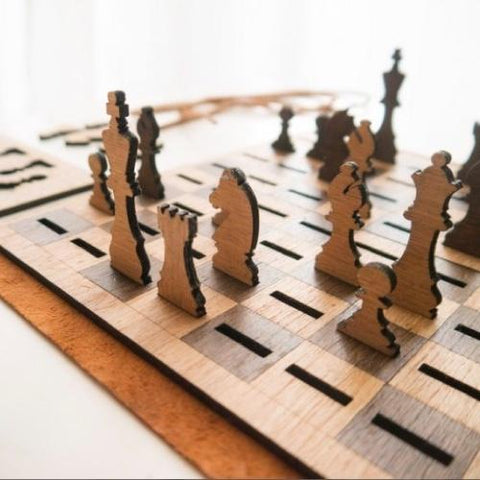

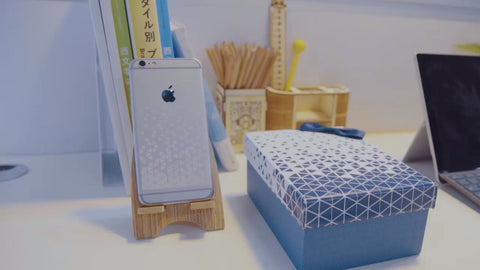

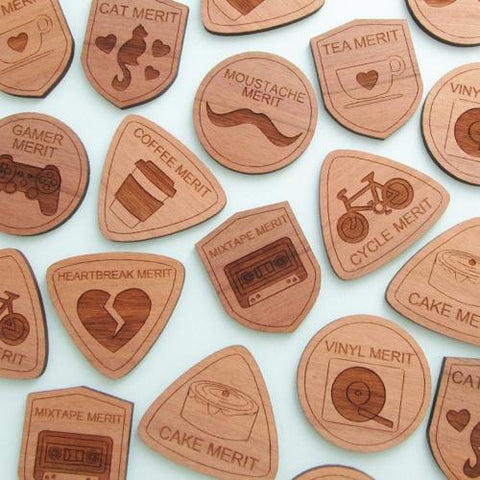

★Wood

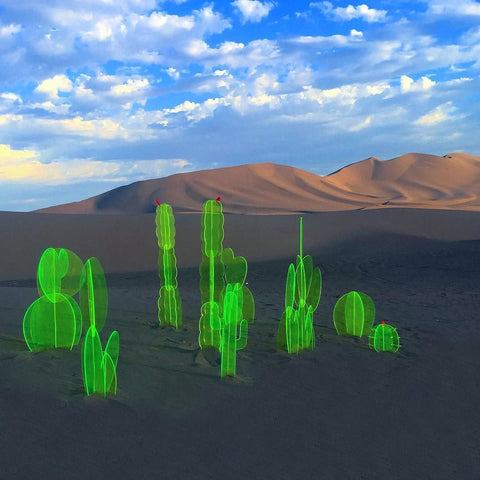

?★Acrylic

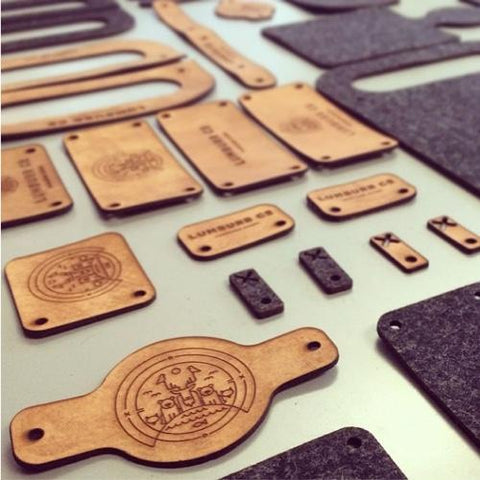

?★Leather

Empower to Make Ideas Happen

xTool Laserbox Rotary enables you to turn creative idea to DIY crafts in?easier and more efficient way.

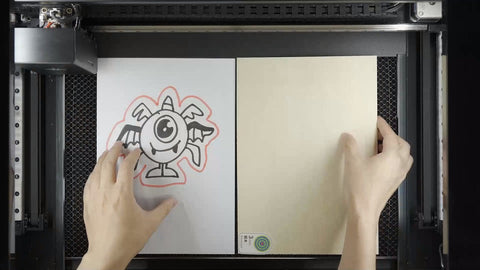

Turn Your Drawing into Masterpiece

With a simple pen, you’ll be able to command Laserbox to cut or engraving your drawings accordingly.

① Directly draw on material or white paper.

② Place the material (along with the paper) into the machine.

③ Press the button to start and get the real products in minutes.

Extract Delicate Design to DIY Crafts

Coordinate with on-board camera and software, you’re free to take out the designs from any surface.

① Place your target design and material in the machine.

② Select the area and drag to the material for laser cutting or engraving.

③ Press the button to start.

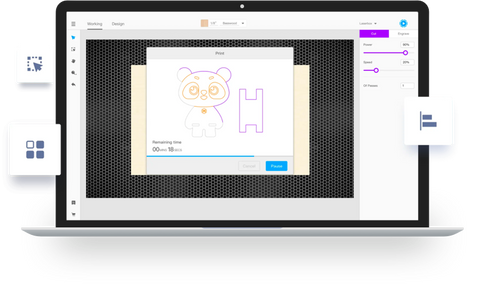

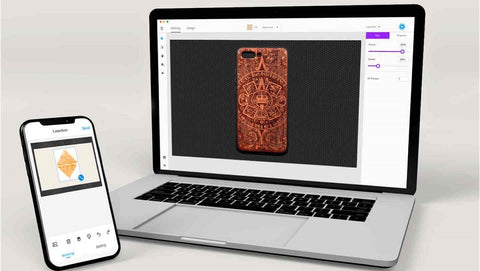

Software to Faciliate Smart Operation

Integrated with exclusive software, providing one-stop solution to fulfill advanced cutting and engraving needs.

All-in-One Graphic Design Tool
  • Free Case Template
  • Align or array in a click
  • 70+ Variou Graphics
  • Boolean Operations?
  • Photo engraving filters
  • Auto Image Vectorizer

Visible Working Area for Real-time Process

① Place your design properly on the whatever material you choose.

② Preview the moving track that Laserbox cuts or engraves.

③ Watch your ideas brought to life in real time.

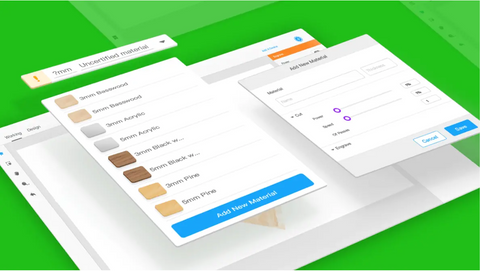

Intelligent Cutting & Engraving Settings

Recommended Default Setting

For xTool offical materials, Laserbox auto-recognizes material and recommends

default parameters for cutting and engraving accordingly.

Customized Setting for Easy Retrival

For other supported unofficial materials, you can manually set up power/speed

parameters and save them for future use.

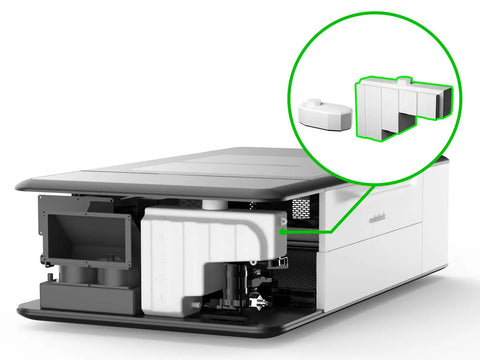

Commit to Reliable & Stable Experience

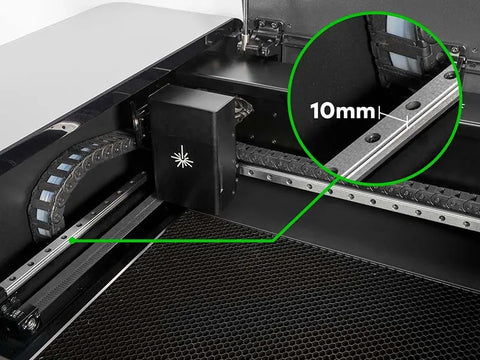

★Long Service Time

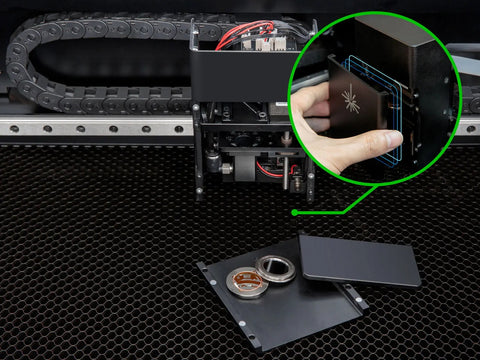

★Easier Maintenance

★Longer-lasting Working Hours

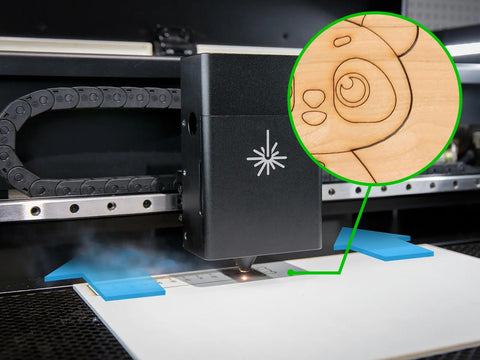

★Cleaner Operation



Product Specification

Laser System
Laser Power 40W
Laser Source CO₂ Glass Laser Tube
Lifespan 6000~8000h
Safety Guard Class I (FDA Certified)

Materials Processing
Max. Cutting Depth 0.59” Basswood
Max. Carving Speed 350mm/s
Carving Precision 0.05mm
Noise Rating ≤70dB

Work Area
Work Table Area 19.69” x 11.81”
Max. Workpiece Height(with honeycomb tray) 0.87”
Max. Workpiece Height(without honeycomb tray) 1.97”
Work Table Surface Black (Special surface finishing technique helps reduce burn marks or discoloration)

AI Camera Information
Focus Mode AI Visual AF/Material Recognition AF/Material Set-up AF
Camera High-resolution Ultra-wide Camera
Number of Pixels (Effective) 5MP
Visible Area 19.29” x 11.42”
Image Resolution 1000DPI
Positioning AI Visual Positioning (Error range ≤ 5mm)

Working Mode
Cooling Closed-loop self-contained internal liquid cooling system
Air Assist Internal air assist with no external compressor hookup required
Connection / Transmission Wi-Fi, USB, Ethernet

Appearance Overview
Operation Panel Push Button + Circular LED Indicator Light
Frame Materials V0 Flame Retardant ABS / PC
Connecting Interfaces USB cable/Ethernet cable/Power cable/Aviation Connector
Outlet Diameter 63.5mm

Software Requirements
Operating Systems Windows/macOS
Control Software Laserbox
Design Software AutoCAD, Solidworks, Inkscape, CorelDRAW, PowerPoint, Illustrator, Photoshop, Google AutoDraw, etc.
Supported File Type SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.

Software System Requirements
Operating Systems 64-bit Windows 7 or later/macOS Mojave10.13 or later
Processor Core i3 or AMD A6 2.4Ghz
Memory Space 4GB RAM
Storage Space 5GB

Environmental Requirements
Power 220/110VAC, 50/60Hz
Work Consumption (without fan) 350W
Nonoperating Temperature 0~45°C
Relative Humidity 5~90°C
Operating Ambient Temperature 0~35°C

Size and Weight
Product Weight 45kg
Product Size (L x W x H) 37.72” x 20.79” x 10.55”

Supported Accessories
Smart Smoke Purifier √
Exhaust Fan √
Rotary Attachment x

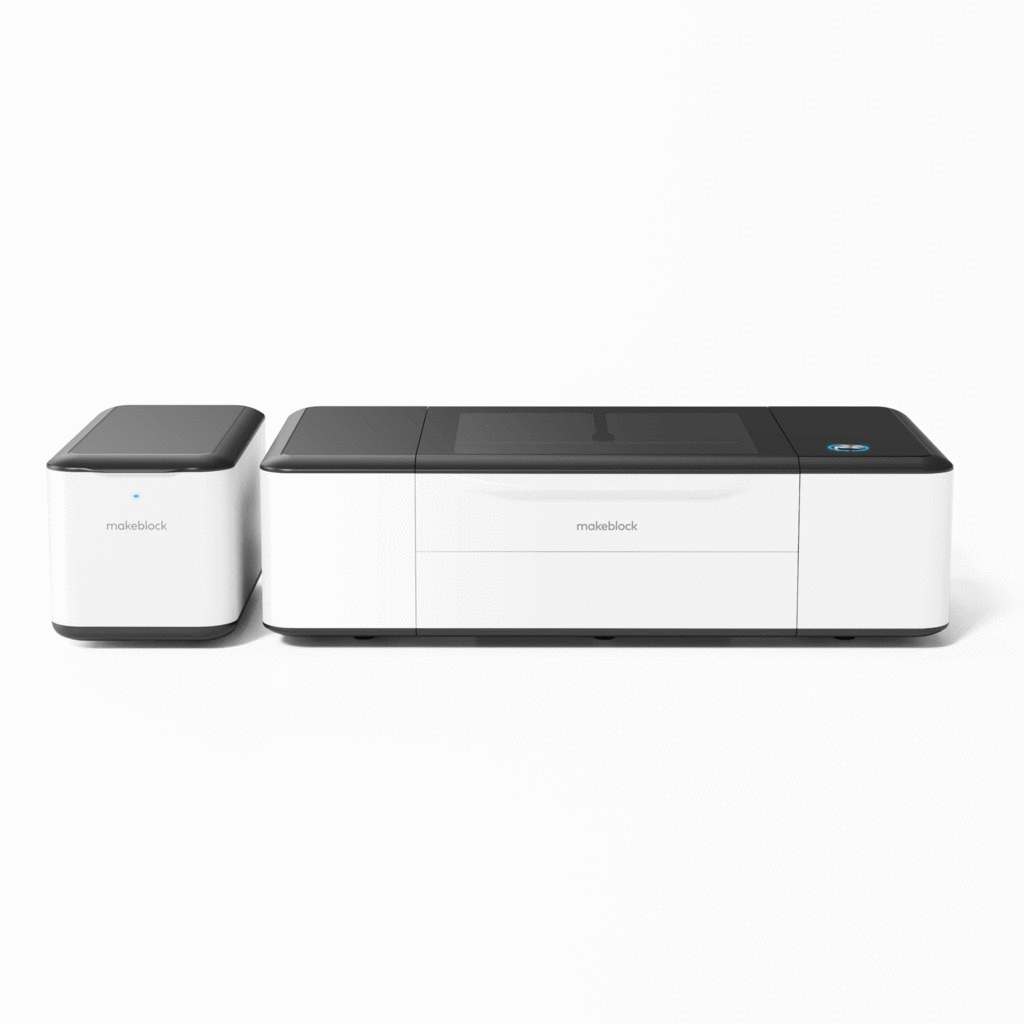

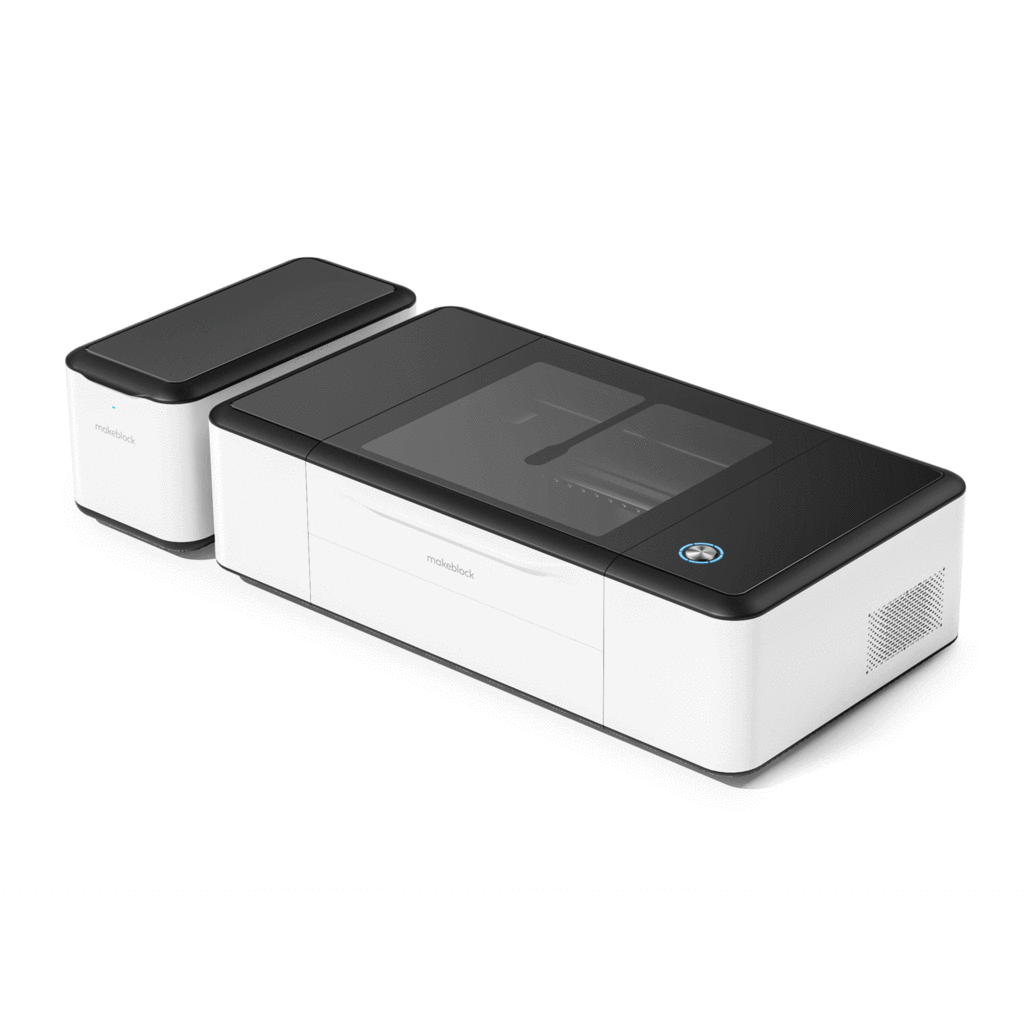

Smart Smoke Purifier



Features
Smart air filtering  Automatically turns on when Laserbox starts working and turns off once finished, i.e. adjust the air flow in line with Laserbox.
Replaceable filter The default filter inside can sustain 7-8 continuous working hours, after that you can replace to a new one.
Compact design With the dimension of 260x528x268mmm, it weighs 10.5kg only, half of the primary filters for laser cutting machine.
Green & Eco-Friendly Efficiently filter out the generated toxic fumes, dust, vaspors produced via laser cutting process.

Additional information

Set

Laserbox Pro+Smart Smoke Purfie, Laserbox Machine
